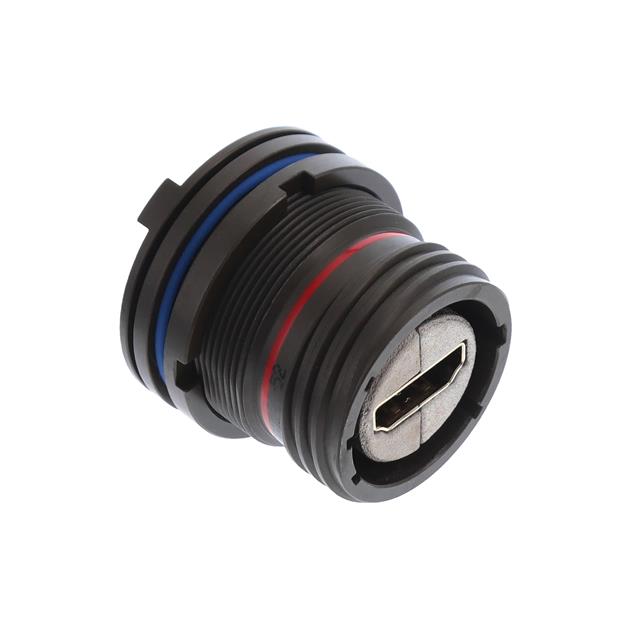

HDMIFTV7AGF059

Active

Amphenol Socapex

HDMIFTV RED FLG, A CODE, OD CAD,

Search across all available documentation for this part.

Active

Amphenol Socapex

HDMIFTV RED FLG, A CODE, OD CAD,

Technical Specifications

Parameters and characteristics for this part

Part	Convert From (Adapter End)	Mounting Type	Convert To (Adapter End)	Number of Contacts [custom]	Gender	Ingress Protection	Connector Type	Mounting Feature	Operating Temperature [Max]	Operating Temperature [Min]	Shell/Shielding Material	Shielding	Number of Ports	Termination	Specifications
Amphenol Socapex HDMIFTV7APENF312	HDMI Receptacle	Bulkhead Panel Mount	HDMI Receptacle
Amphenol Socapex HDMIFTV7AGF459		Panel Mount Through Hole		19	Receptacle	IP68 - Dust Tight Waterproof	HDMI	Bulkhead - Front Side Nut	85 °C	-40 °C	Aluminum	Shielded	1	Solder	HDMI 2.0
Amphenol Socapex HDMIFTV7AZNF459		Panel Mount Through Hole		19	Receptacle	IP68 - Dust Tight Waterproof	HDMI	Bulkhead - Front Side Nut	85 °C	-40 °C	Aluminum	Shielded	1	Solder	HDMI 2.0
Amphenol Socapex HDMIFTV7AZN	HDMI Receptacle	Bulkhead Panel Mount	HDMI Receptacle
Amphenol Socapex HDMIFTV7APEN	HDMI Receptacle	Bulkhead Panel Mount	HDMI Receptacle
Amphenol Socapex HDMIFTV7AN	HDMI Receptacle	Bulkhead Panel Mount	HDMI Receptacle
Amphenol Socapex HDMIFTV7AGF059		Panel Mount Through Hole		19	Receptacle	IP68 - Dust Tight Waterproof	HDMI	Bulkhead - Front Side Nut	85 °C	-40 °C	Aluminum	Shielded	1	Solder	HDMI 2.0
Amphenol Socapex HDMIFTV7ANF312	HDMI Receptacle	Bulkhead Panel Mount	HDMI Receptacle
Amphenol Socapex HDMIFTV7APEZNF312	HDMI Receptacle	Bulkhead Panel Mount	HDMI Receptacle
Amphenol Socapex HDMIFTV7AZNF312	HDMI Receptacle	Bulkhead Panel Mount	HDMI Receptacle

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 146.04

General part information

HDMI HDMI 2.0 Receptacle Connector 19 Position Panel Mount, Through Hole
