ZX10C30B01

Active

Honeywell Sensing and Productivity Solutions

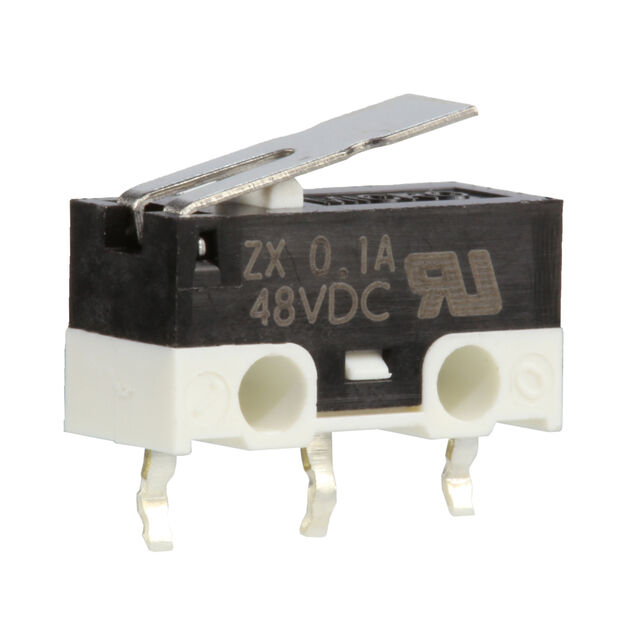

SWITCH SNAP ACTION SPDT 0.1A 48V

Deep-Dive with AI

DocumentsZX10C10A01 Z Series Install Instr +1

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	ZX10C30B01

Actuator Type	Lever, Straight
Circuit	SPDT
Current Rating (Amps)	100 mA
Differential Travel	0.05 in
Differential Travel	1.3 mm
Electrical Life	1000000 Cycles
Mechanical Life	1000000 Cycles
Mounting Type	Through Hole
Operating Force	40 gf
Operating Position [x]	6.4 mm
Operating Position [x]	0.25 in
Operating Temperature [Max]	120 °C
Operating Temperature [Min]	-40 °C
Overtravel	0.6 mm
Overtravel	0.025 "
Pretravel	0.134 in
Pretravel	3.4 mm
Release Force	6 gf
Switch Function	On-Mom
Termination Style	PC Pin
Voltage Rating - DC	48 V

ZX10C Series

Part	Actuator Type	Mounting Type	Voltage Rating - DC	Termination Style	Current Rating (Amps)	Ingress Protection	Electrical Life	Mechanical Life	Switch Function	Circuit	Operating Temperature [Max]	Operating Temperature [Min]	Differential Travel	Differential Travel	Operating Force	Pretravel	Pretravel	Release Force	Operating Position [x]	Operating Position [x]	Overtravel	Overtravel	Operating Position [custom]	Operating Position [custom]	Operating Position	Operating Position
Honeywell Sensing and Productivity Solutions ZX10E20G01-1	Lever Simulated Roller	Through Hole	48 V	PC Pin	100 mA	IP40	10000 Cycles	3000000 Cycles	On-Mom	SPDT	85 °C	-40 °C
Honeywell Sensing and Productivity Solutions ZX10E50G01	Lever Simulated Roller	Surface Mount	48 V	Gull Wing	100 mA	IP40	10000 Cycles	3000000 Cycles	On-Mom	SPDT	85 °C	-40 °C
Honeywell Sensing and Productivity Solutions ZX10C60A01	Round (Pin Plunger)	Through Hole Right Angle	48 V	PC Pin	100 mA		1000000 Cycles	1000000 Cycles	On-Mom	SPDT	120 °C	-40 °C	0.012 "	0.3 mm	90 gf	1.3 mm	0.051 in	15 gf	0.276 in	7 mm	0.2 mm	0.008 in
Honeywell Sensing and Productivity Solutions ZX10C30B01	Lever Straight	Through Hole	48 V	PC Pin	100 mA		1000000 Cycles	1000000 Cycles	On-Mom	SPDT	120 °C	-40 °C	0.05 in	1.3 mm	40 gf	3.4 mm	0.134 in	6 gf	0.25 in	6.4 mm	0.6 mm	0.025 "
Honeywell Sensing and Productivity Solutions ZX10C30E01	Lever Simulated Roller	Through Hole	48 V	PC Pin	100 mA	IP40	10000 Cycles	3000000 Cycles	On-Mom	SPDT	85 °C	-40 °C	0.05 in	1.3 mm	35 gf	3.8 mm	0.15 in				0.6 mm	0.024 in	0.437 "	11.1 mm
Honeywell Sensing and Productivity Solutions ZX10C50A01	Round (Pin Plunger)	Surface Mount	48 V	Gull Wing	100 mA	IP40	10000 Cycles	3000000 Cycles	On-Mom	SPDT	85 °C	-40 °C	0.012 "	0.3 mm	90 gf	1.3 mm	0.051 in	15 gf			0.2 mm	0.008 in			9.1 mm	0.358 in
Honeywell Sensing and Productivity Solutions ZX10C60J01	Lever Straight	Surface Mount	48 V	Gull Wing	100 mA	IP40	10000 Cycles	3000000 Cycles	On-Mom	SPDT	85 °C	-40 °C
Honeywell Sensing and Productivity Solutions ZX10C30C01	Lever Straight	Through Hole	48 V	PC Pin	100 mA	IP40	10000 Cycles	3000000 Cycles	On-Mom	SPDT	85 °C	-40 °C	0.05 in	1.3 mm	30 gf	3.4 mm	0.134 in				0.6 mm	0.024 in			8.4 mm	0.33 in
Honeywell Sensing and Productivity Solutions ZX10C30A01	Round (Pin Plunger)	Through Hole	48 V	PC Pin	100 mA	IP40	10000 Cycles	3000000 Cycles	On-Mom	SPDT	85 °C	-40 °C	0.012 "	0.3 mm	90 gf	1.3 mm	0.051 in	15 gf	0.276 in	7 mm	0.2 mm	0.008 in
Honeywell Sensing and Productivity Solutions ZX10C20J01	Lever Straight	Through Hole	48 V	PC Pin	100 mA	IP40	10000 Cycles	3000000 Cycles	On-Mom	SPDT	85 °C	-40 °C	0.012 "	0.3 mm	15 gf	10.1 mm	0.4 in	2 gf			0.9 mm	0.035 "			10.8 mm	0.425 "

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1000	$ 1.98

Description

General part information

ZX10C Series

Switch SPDT Through Hole
