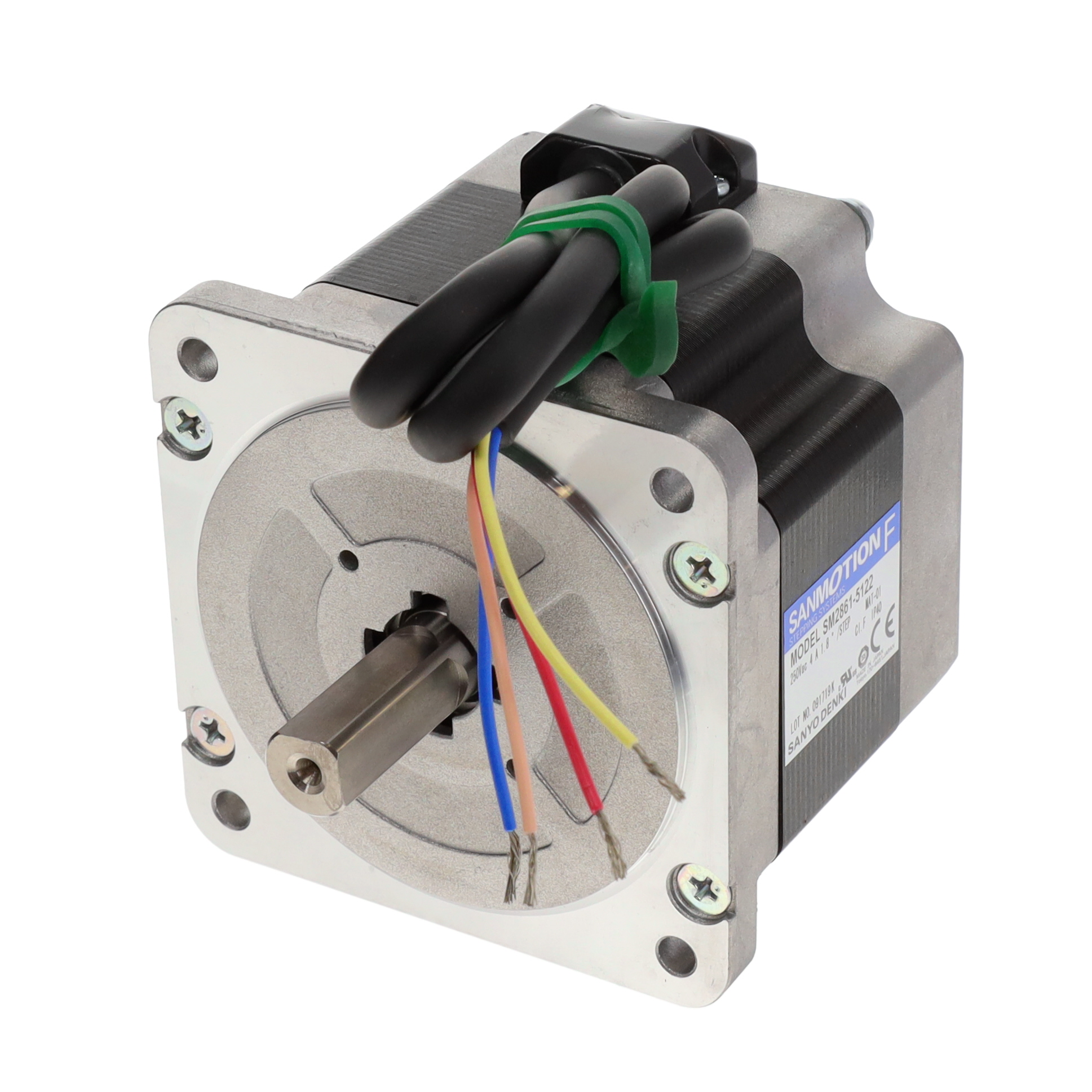

SM2861-5122
ActiveSanyo Denki SanMotion Products
STEP, F2, SQ.86, 1.8, HALF INCH
Deep-Dive with AI
Search across all available documentation for this part.
SM2861-5122
ActiveSanyo Denki SanMotion Products
STEP, F2, SQ.86, 1.8, HALF INCH
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | SM2861-5122 |
|---|---|
| Approval Agency | cURus, CE, TUV |
| Coil Resistance | 560 Ohms |
| Coil Type | Bipolar |
| Current Rating (Amps) | 4 A |
| Diameter - Shaft [diameter] | 12.7 mm |
| Diameter - Shaft [diameter] | 0.5 in |
| Length - Shaft and Bearing [x] | 30 mm |
| Length - Shaft and Bearing [x] | 1.181 in |
| Mounting Hole Spacing | 2.74 in |
| Mounting Hole Spacing | 69.6 mm |
| NEMA Frame Size | 34 |
| Operating Temperature [Max] [custom] | 50 °C |
| Operating Temperature [Min] [custom] | -10 °C |
| Rotor Inertia | 35.59 gcm² |
| Size / Dimension [x] | 86 mm |
| Size / Dimension [x] | 3.386 in |
| Size / Dimension [y] | 3.386 in |
| Size / Dimension [y] | 86 mm |
| Step Angle | 1.8 ° |
| Steps per Revolution | 200 |
| Termination Style | Wire Leads |
| Torque - Holding (oz-in / mNm) | 467.3 oz-in |
| Torque - Holding (oz-in / mNm) | 3300 mNm |
| Type | Hybrid, Dual Shaft |
| Voltage - Rated | 100 VAC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 131.80 | |
| 5 | $ 121.13 | |||
| 10 | $ 116.80 | |||
| 25 | $ 111.32 | |||
| 50 | $ 110.00 | |||
Description
General part information
SM2861 Series
Bipolar Stepper Motor Hybrid, Dual Shaft Frame Size 34 200.0 Step 4 A 100VAC
Documents
Technical documentation and resources
No documents available
