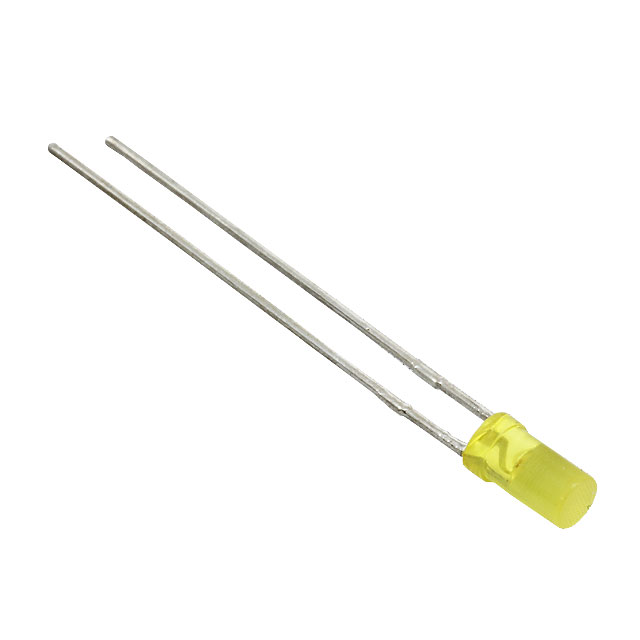

WP424YDT

Active

Kingbright

LED UNI-COLOR YELLOW 590NM 2-PIN T-1 BULK

Search across all available documentation for this part.

Active

Kingbright

LED UNI-COLOR YELLOW 590NM 2-PIN T-1 BULK

Technical Specifications

Parameters and characteristics for this part

Part	Current - Test	Wavelength - Dominant	Viewing Angle	Color	Lens Size	Lens Size	Package / Case	Wavelength - Peak	Lens Transparency	Voltage - Forward (Vf) (Typ)	Mounting Type	Supplier Device Package	Size / Dimension [diameter]	Lens Color	Height (Max) [Max] [z]	Millicandela Rating	Configuration
Kingbright WP424YDT	20 mA	588 nm	100 °	Yellow	3 mm	T-1	Radial	590 nm	Diffused	2.1 V	Through Hole	T-1	3 mm	Yellow	6 mm	3 mcd	Standard
Kingbright WP424IDT	20 mA	617 nm	100 °	Red	3 mm	T-1	Radial	627 nm	Diffused	2 V	Through Hole	T-1	3 mm	Red	6 mm	4 mcd	Standard
Kingbright WP424GDT	20 mA	568 nm	100 °	Green	3 mm	T-1	Radial	565 nm	Diffused	2.2 V	Through Hole	T-1	3 mm	Green	6 mm	6 mcd	Standard
Kingbright WP424HDT	20 mA	635 nm	100 °	Red	3 mm	T-1	Radial	700 nm	Diffused	2.25 V	Through Hole	T-1	3 mm	Red	6 mm	0.6 mcd	Standard
Kingbright WP424SRDT	20 mA	640 nm	100 °	Red	3 mm	T-1	Radial	655 nm	Diffused	1.85 V	Through Hole	T-1	3 mm	Red	6 mm	20 mcd	Standard
Kingbright WP424EDT	20 mA	617 nm	100 °		3 mm	T-1	Radial	627 nm	Diffused	2 V	Through Hole	T-1	3 mm	Orange	6 mm	4 mcd	Standard

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Yellow 588nm LED Indication - Discrete 2.1V Radial
