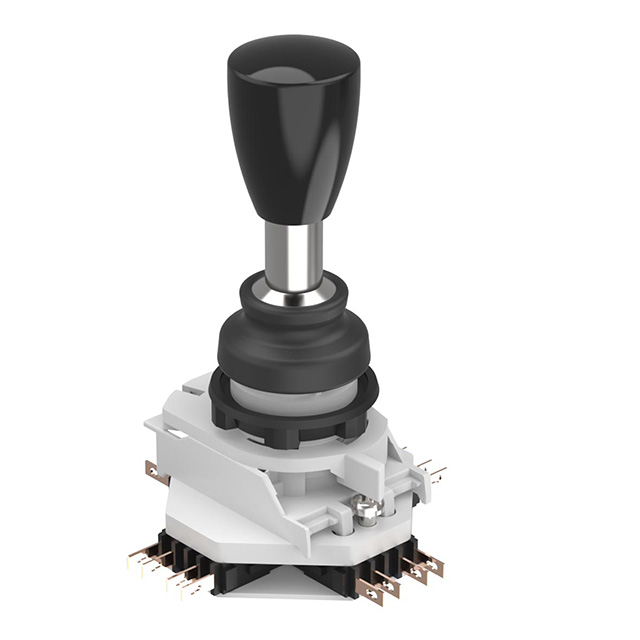

44-800.8

Obsolete

EAO

SWITCH JOYSTICK DGTL 5A 250V

Search across all available documentation for this part.

Obsolete

EAO

SWITCH JOYSTICK DGTL 5A 250V

Technical Specifications

Parameters and characteristics for this part

Specification	44-800.8

Actuator Type	Joystick
Current Rating (Amps)	5 A
Ingress Protection	IP65 - Dust Tight, Water Resistant
Output	Digital (Mechanical Switch)
Panel Cutout Dimensions [diameter]	22.3 mm
Switch Function	8-Way Directional
Termination Style	0.11 in
Termination Style	Quick Connect, Solder
Termination Style	2.8 mm
Type	Joystick, 2 - Axis
Voltage Rating - AC	250 V

Part	Switch Function	Current Rating (Amps)	Type	Termination Style	Termination Style	Termination Style	Output	Ingress Protection	Panel Cutout Dimensions [diameter]	Voltage Rating - AC	Actuator Type
EAO 44-800.8	8-Way Directional	5 A	Joystick 2 - Axis	0.11 in	Quick Connect Solder	2.8 mm	Digital (Mechanical Switch)	IP65 - Dust Tight Water Resistant	22.3 mm	250 V	Joystick
EAO 44-800.2	2-Way Directional	5 A	Joystick 1 - Axis	0.11 in	Quick Connect Solder	2.8 mm	Digital (Mechanical Switch)	IP65 - Dust Tight Water Resistant	22.3 mm	250 V	Joystick

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Joystick, 2 - Axis Digital (Mechanical Switch) Output

Technical documentation and resources

No documents available
