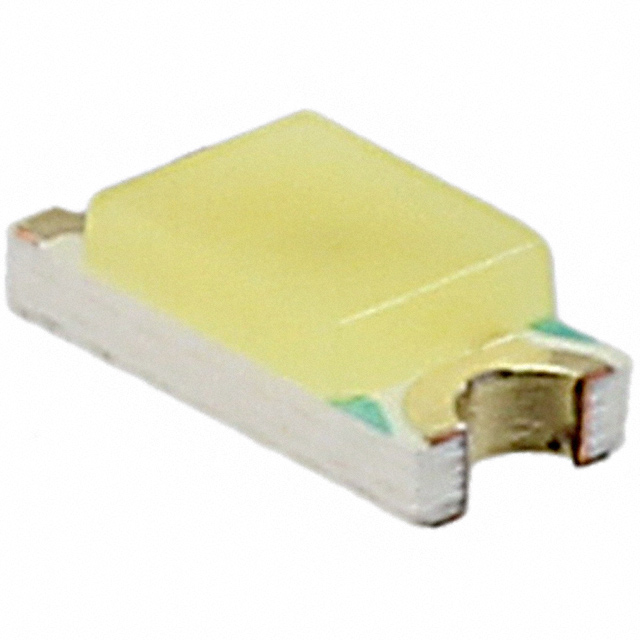

VAOL-S12WR4
ActiveVisual Communications Company - VCC
LED WHITE DIFFUSED 1206 SMD
Deep-Dive with AI
Search across all available documentation for this part.
VAOL-S12WR4
ActiveVisual Communications Company - VCC
LED WHITE DIFFUSED 1206 SMD
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | VAOL-S12WR4 |
|---|---|
| Color | White |
| Configuration | Standard |
| Current - Test | 5 mA |
| Height (Max) [Max] [z] | 1.3 mm |
| Lens Color | Yellow |
| Lens Size [x] | 2 mm |
| Lens Size [y] | 1.5 mm |
| Lens Style | Rectangle with Flat Top |
| Lens Transparency | Diffused |
| Millicandela Rating | 72 mcd |
| Mounting Type | Surface Mount |
| Package / Case | 1206 (3216 Metric) |
| Size / Dimension [x] | 3.2 mm |
| Size / Dimension [y] | 1.5 mm |
| Supplier Device Package | 1206 |
| Viewing Angle | 140 ° |
| Voltage - Forward (Vf) (Typ) | 2.9 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 1.36 | |
| 10 | $ 0.85 | |||
| 100 | $ 0.59 | |||
| 500 | $ 0.49 | |||
| 1000 | $ 0.45 | |||
| Digi-Reel® | 1 | $ 1.36 | ||
| 10 | $ 0.85 | |||
| 100 | $ 0.59 | |||
| 500 | $ 0.49 | |||
| 1000 | $ 0.45 | |||
| Tape & Reel (TR) | 3000 | $ 0.42 | ||
| 6000 | $ 0.40 | |||
| 9000 | $ 0.39 | |||
| 15000 | $ 0.38 | |||
| 21000 | $ 0.37 | |||
Description
General part information
VAOL-S12 Series
White LED Indication - Discrete 2.9V 1206 (3216 Metric)
Documents
Technical documentation and resources
No documents available
