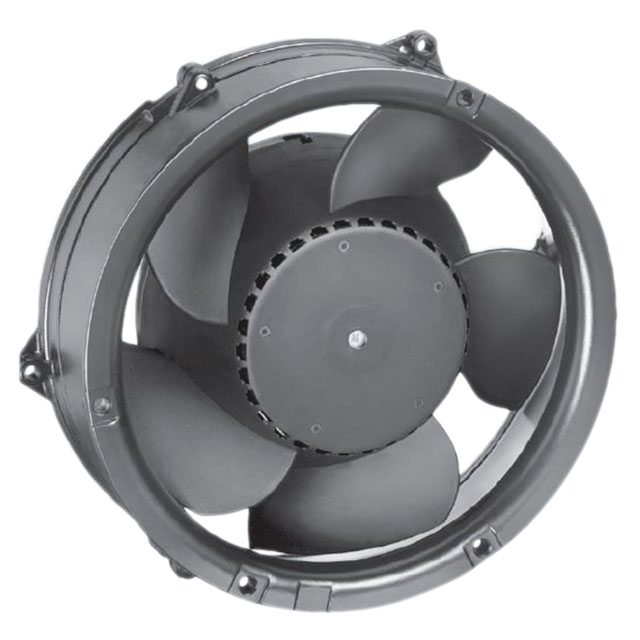

DV6248U

Active

ebm-papst Inc.

FAN AXIAL 171.5X50.8MM 48VDC

Search across all available documentation for this part.

Active

ebm-papst Inc.

FAN AXIAL 171.5X50.8MM 48VDC

Technical Specifications

Parameters and characteristics for this part

Specification	DV6248U

Air Flow	317.8 CFM
Air Flow	8.9 m³/min
Approval Agency	UL
Bearing Type	Ball
Fan Type	Tubeaxial
Ingress Protection	IP68 - Dust Tight, Waterproof
Material - Blade	Polyamide (PA), Nylon, Fiberglass Reinforced
Material - Frame	Aluminum
Noise	63 dB
Operating Temperature [Max]	75 ░C
Operating Temperature [Max]	75 °C
Operating Temperature [Min]	-20 C
Operating Temperature [Min]	-20 °C
Power (Watts)	40 W
RPM	4300 RPM
Size / Dimension	Round
Size / Dimension [diameter]	171.5 mm
Termination	2 Wire Leads
Voltage - Rated [custom]	48 VDC
Voltage Range [Max]	60 V
Voltage Range [Min]	28 V
Weight	861.8 g
Weight	1.9 lbs
Width [y]	2 "

Part	Voltage Range [Max]	Voltage Range [Min]	Operating Temperature [Min]	Operating Temperature [Min]	Operating Temperature [Max]	Operating Temperature [Max]	Ingress Protection	Noise	Power (Watts)	Air Flow	Air Flow	Width [y]	RPM	Termination	Fan Type	Voltage - Rated [custom]	Weight	Weight	Bearing Type	Approval Agency	Material - Frame	Material - Blade	Size / Dimension	Size / Dimension [diameter]
ebm-papst Inc. DV6248U	60 V	28 V	-20 C	-20 °C	75 ░C	75 °C	IP68 - Dust Tight Waterproof	63 dB	40 W	317.8 CFM	8.9 m³/min	2 "	4300 RPM	2 Wire Leads	Tubeaxial	48 VDC	861.8 g	1.9 lbs	Ball	UL	Aluminum	Fiberglass Reinforced Nylon Polyamide (PA)	Round	171.5 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	32	$ 192.38

General part information

Fan Tubeaxial 48VDC Round - 171.5mm Dia Ball 317.8 CFM (8.90m³/min) 2 Wire Leads
