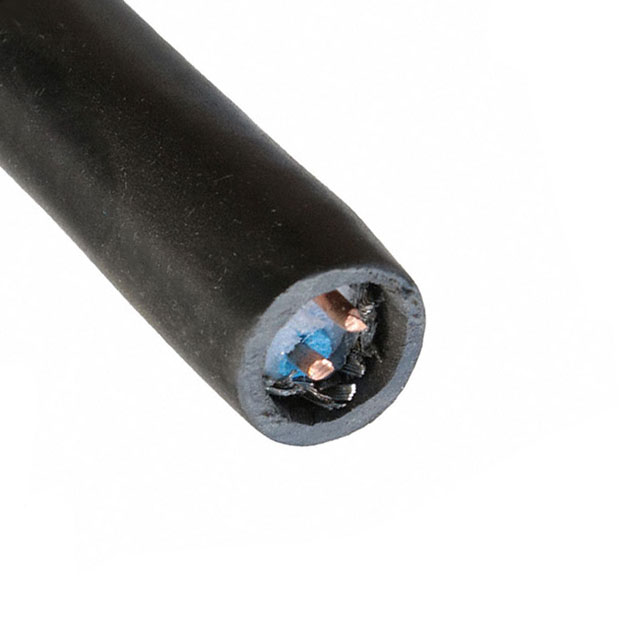

M4158 BK005
ActiveALPHA WIRE
CABLE MULTI CONDUCTOR 16AWG 100'
Deep-Dive with AI
Search across all available documentation for this part.
M4158 BK005
ActiveALPHA WIRE
CABLE MULTI CONDUCTOR 16AWG 100'
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | M4158 BK005 |
|---|---|
| Cable Type | Multi-Conductor |
| Conductor Material | Copper, Bare |
| Conductor Strand | Solid |
| Impedance | 124 Ohms |
| Jacket (Insulation) Diameter | 0.44 in |
| Jacket (Insulation) Diameter | 11.18 mm |
| Jacket (Insulation) Material | Poly-Vinyl Chloride (PVC) |
| Jacket Color | Black |
| Length [x] | 100 ft |
| Length [x] | 30.48 m |
| Operating Temperature [Max] | 60 °C |
| Operating Temperature [Min] | -20 C |
| Shield Coverage | 90 %, 100 % |
| Shield Material | Copper, Tinned, Aluminum |
| Shield Type | Foil, Braid |
| VoP, Velocity of Propagation | 78 |
| Wire Gauge | 16 AWG |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Spool | 1 | $ 501.87 | |
| 2 | $ 477.15 | |||
| 3 | $ 463.15 | |||
| 5 | $ 446.00 | |||
| 7 | $ 434.99 | |||
| 10 | $ 423.54 | |||
| 25 | $ 418.70 | |||
Description
General part information
M4158 Series
Multi-Conductor Cable 16 AWG 100.0' (30.48m) 124 Ohms
