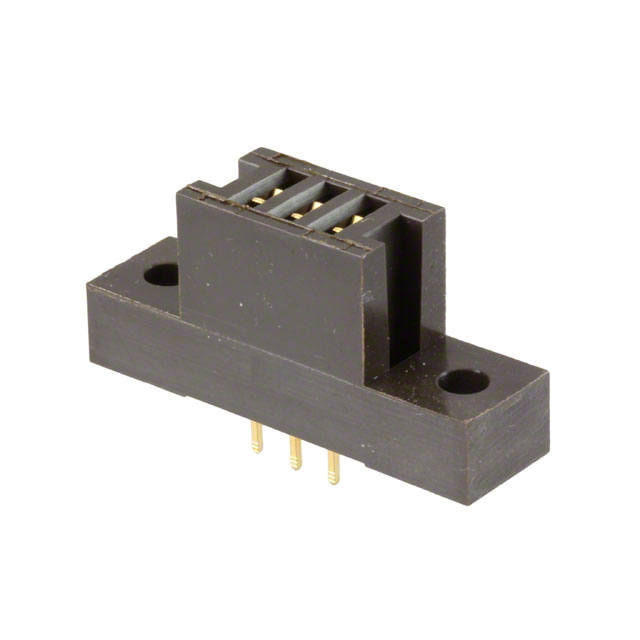

TMJ03DKSD-S1512

Active

Sullins Connector Solutions

CONN TRANSIST TO-254 3POS GOLD

Search across all available documentation for this part.

Active

Sullins Connector Solutions

CONN TRANSIST TO-254 3POS GOLD

Technical Specifications

Parameters and characteristics for this part

Specification	TMJ03DKSD-S1512

Contact Finish - Mating	Gold
Contact Finish - Post	Gold
Contact Finish Thickness - Mating	30 Áin
Contact Finish Thickness - Mating	0.76 Ám
Contact Finish Thickness - Post	30 µin
Contact Finish Thickness - Post	0.76 µm
Contact Material - Mating	Beryllium Copper
Contact Material - Post	Beryllium Copper
Contact Resistance	30 mOhm
Current Rating (Amps)	3 A
Features	Flange
Mounting Type	Through Hole
Number of Positions or Pins (Grid)	3
Operating Temperature [Max]	347 °F
Operating Temperature [Min]	-50 °C
Pitch - Mating	3.81 mm
Pitch - Mating	0.15 in
Pitch - Post	0.15 in
Pitch - Post	3.81 mm
Termination	Solder
Type	Transistor, TO-254

Part	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Mounting Type	Pitch - Mating	Pitch - Mating	Termination	Contact Material - Mating	Operating Temperature [Min]	Operating Temperature [Max]	Type	Contact Resistance	Pitch - Post	Pitch - Post	Contact Material - Post	Features	Contact Finish - Post	Number of Positions or Pins (Grid)	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Contact Finish - Mating	Current Rating (Amps)
Sullins Connector Solutions TMJ03DKSD-S1512	30 µin	0.76 µm	Through Hole	3.81 mm	0.15 in	Solder	Beryllium Copper	-50 °C	347 °F	Transistor TO-254	30 mOhm	0.15 in	3.81 mm	Beryllium Copper	Flange	Gold	3	30 Áin	0.76 Ám	Gold	3 A

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	10	$ 15.39

General part information

3 (Rectangular) Pos Transistor, TO-254 Socket Gold Through Hole

Technical documentation and resources

No documents available
