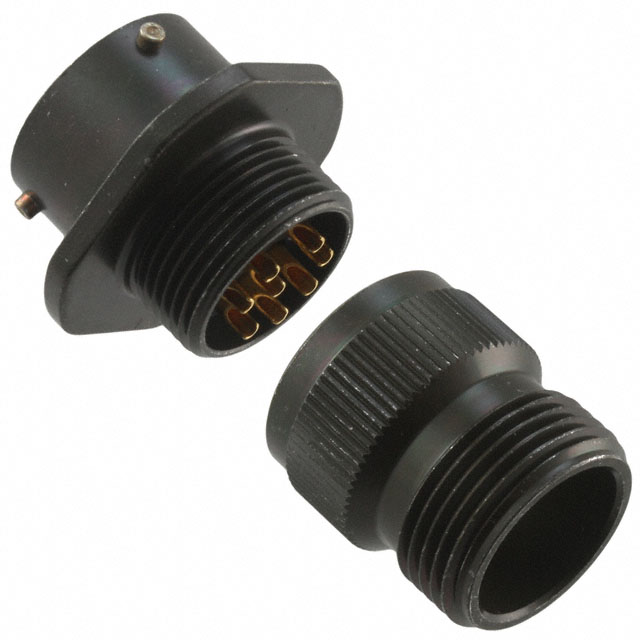

PT01A-12-8S

Active

Amphenol Industrial Operations

CONN RCPT FMALE 8P GOLD SLDR CUP

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet 10-101949-010

PT01A-12-8S

Active

Amphenol Industrial Operations

CONN RCPT FMALE 8P GOLD SLDR CUP

Deep-Dive with AI

DocumentsDatasheet 10-101949-010

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	PT01A-12-8S

Applications	Military, Mass Transit, Instrumentation, Aerospace, Industrial
Backshell Material, Plating	Olive Drab Cadmium, Aluminum
Color	Olive Drab
Connector Type	Receptacle, Female Sockets
Contact Finish - Mating	Gold
Contact Material	Copper Alloy
Fastening Type	Bayonet Lock
Features	Backshell
Insert Material	Neoprene
Mounting Type	Free Hanging (In-Line)
Number of Positions	8
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Orientation	N
Primary Material	Metal
Qualification	MIL-DTL-26482 Series I
Shell Finish	Olive Drab Chromate over Cadmium
Shell Material	Aluminum
Shell Size - Insert	12-8
Shielding	Unshielded

PT01A Series

Part	Shell Finish	Insert Material	Color	Cable Opening [custom]	Cable Opening [custom]	Shielding	Features	Connector Type	Shell Material	Applications	Operating Temperature [Min]	Operating Temperature [Max]	Number of Positions	Contact Finish - Mating	Backshell Material, Plating	Fastening Type	Qualification	Orientation	Mounting Type	Primary Material	Shell Size - Insert	Contact Material	Shell Size - Insert [Min]	Shell Size - Insert [Max]	Shell Size - Insert [Max] [diameter]	Shell Size - Insert [Min] [diameter]	Number of Positions	Voltage Rating
Amphenol Industrial Operations PT01A12-8P-SR	Olive Drab Chromate over Cadmium	Neoprene	Olive Drab	7.92 mm	0.312 in	Unshielded	Backshell Cable Clamp Strain Relief	Male Pins Receptacle	Aluminum	Aerospace Industrial Instrumentation Mass Transit Military	-55 °C	125 °C	8	Gold	Aluminum Olive Drab Cadmium	Bayonet Lock	MIL-DTL-26482 Series I	N	Free Hanging (In-Line)	Metal	12-8	Copper Alloy
Amphenol Industrial Operations PT01A12-14P-SR	Olive Drab Chromate over Cadmium	Neoprene	Olive Drab	7.92 mm	0.312 in	Unshielded	Backshell Cable Clamp Strain Relief	Male Pins Receptacle	Aluminum	Aerospace Industrial Instrumentation Mass Transit Military	-55 °C	125 °C	14	Gold	Aluminum Olive Drab Cadmium	Bayonet Lock	MIL-DTL-26482 Series I	N	Free Hanging (In-Line)	Metal		Copper Alloy	12	14
Amphenol Industrial Operations PT01A20-39S-SR	Olive Drab Chromate over Cadmium	Neoprene	Olive Drab	15.88 mm	0.625 in	Unshielded	Backshell Cable Clamp Strain Relief	Receptacle Female Sockets	Aluminum	Aerospace Communication Systems Industrial Instrumentation Mass Transit	-55 °C	125 °C	39	Gold	Aluminum Olive Drab Cadmium	Bayonet Lock	MIL-DTL-26482 Series I	N	Free Hanging (In-Line)	Metal		Copper Alloy	20	39
Amphenol Industrial Operations PT01A20-16S-SR	Olive Drab Chromate over Cadmium	Neoprene	Olive Drab	15.88 mm	0.625 in	Unshielded	Backshell Cable Clamp Strain Relief	Receptacle Female Sockets	Aluminum	Aerospace Communication Systems Industrial Instrumentation Mass Transit	-55 °C	125 °C		Gold	Aluminum Olive Drab Cadmium	Bayonet Lock	MIL-DTL-26482 Series I	N	Free Hanging (In-Line)	Metal		Copper Alloy			20	16	16
Amphenol Industrial Operations PT01A-8-4PW	Olive Drab Chromate over Cadmium	Neoprene	Olive Drab			Unshielded	Backshell	Male Pins Receptacle	Aluminum	Aerospace Industrial Instrumentation Mass Transit Military	-55 °C	125 °C	4	Gold	Aluminum Olive Drab Cadmium	Bayonet Lock	MIL-DTL-26482 Series I	W	Free Hanging (In-Line)	Metal	8-4	Copper Alloy
Amphenol Industrial Operations PT01A8-4P-476	Black Zinc Cobalt	Neoprene	Black			Unshielded	Backshell Cable Clamp	Male Pins Receptacle	Aluminum	Aerospace Communication Systems Industrial Instrumentation Mass Transit	-55 °C	125 °C	4	Gold	Aluminum Black Zinc Cobalt	Bayonet Lock	MIL-DTL-26482 Series I	N	Free Hanging (In-Line)	Metal	8-4	Copper Alloy
Amphenol Industrial Operations PT01A-18-11P	Olive Drab Chromate over Cadmium	Neoprene	Olive Drab			Unshielded	Backshell	Male Pins Receptacle	Aluminum	Aerospace Industrial Instrumentation Mass Transit Military	-55 °C	125 °C	11	Gold	Aluminum Olive Drab Cadmium	Bayonet Lock	MIL-DTL-26482 Series I	N	Free Hanging (In-Line)	Metal	18-11	Copper Alloy
Amphenol Industrial Operations PT01A-12-8S	Olive Drab Chromate over Cadmium	Neoprene	Olive Drab			Unshielded	Backshell	Receptacle Female Sockets	Aluminum	Aerospace Industrial Instrumentation Mass Transit Military	-55 °C	125 °C	8	Gold	Aluminum Olive Drab Cadmium	Bayonet Lock	MIL-DTL-26482 Series I	N	Free Hanging (In-Line)	Metal	12-8	Copper Alloy
Amphenol Industrial Operations PT01A20-24S-SR	Olive Drab Chromate over Cadmium	Neoprene	Olive Drab	15.88 mm	0.625 in	Unshielded	Backshell Cable Clamp Strain Relief	Receptacle Female Sockets	Aluminum	Aerospace Communication Systems Industrial Instrumentation Mass Transit	-55 °C	125 °C	24	Gold	Aluminum Olive Drab Cadmium	Bayonet Lock	MIL-DTL-26482 Series I	N	Free Hanging (In-Line)	Metal		Copper Alloy	20	24				600 VAC
Amphenol Industrial Operations PT01A-8-33S	Olive Drab Chromate over Cadmium	Neoprene	Olive Drab			Unshielded	Backshell	Receptacle Female Sockets	Aluminum	Aerospace Industrial Instrumentation Mass Transit Military	-55 °C	125 °C		Gold	Aluminum Olive Drab Cadmium	Bayonet Lock	MIL-DTL-26482 Series I	N	Free Hanging (In-Line)	Metal	8-33	Copper Alloy

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 43.90
		10	$ 40.29
		100	$ 35.38

Description

General part information

PT01A Series

8 Position Circular Connector Receptacle, Female Sockets Solder Cup
