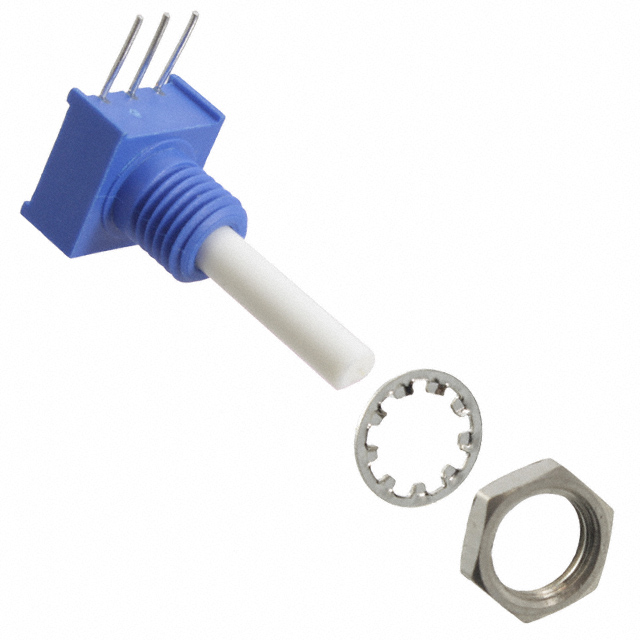

3315C-102-006L

Active

Bourns Inc.

ROTARY ENCODER MECHANICAL 6PPR

Search across all available documentation for this part.

Active

Bourns Inc.

ROTARY ENCODER MECHANICAL 6PPR

Technical Specifications

Parameters and characteristics for this part

Specification	3315C-102-006L

Actuator Type	1/8" Dia Flatted End
Built in Switch	False
Detent	False
Encoder Type	Mechanical
Mounting Type	PCB Through Hole, Panel
Orientation	Right Angle
Output Type	Quadrature (Incremental)
Pulses per Revolution	6
Rotational Life (Cycles Min) [Min]	25K
Termination Style	PC Pin

Part	Rotational Life (Cycles Min) [Min]	Encoder Type	Output Type	Termination Style	Orientation	Pulses per Revolution	Actuator Type	Mounting Type
Bourns Inc. 3315C-125-016L	25K	Mechanical	Quadrature (Incremental)	PC Pin	Right Angle	16	1/8" Dia Flatted End
Bourns Inc. 3315C-102-016L	25K	Mechanical	Quadrature (Incremental)	PC Pin	Right Angle	16	1/8" Dia Flatted End	Panel PCB Through Hole
Bourns Inc. 3315C-102-006L	25K	Mechanical	Quadrature (Incremental)	PC Pin	Right Angle	6	1/8" Dia Flatted End	Panel PCB Through Hole

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	400	$ 5.29

General part information

Rotary Encoder Mechanical 6 Quadrature (Incremental) Right Angle
