MP8049SDU-LF-Z

Active

MONOLITHIC POWER SYSTEMS (MPS)

IC AMP CLASS D QUAD 30W 40QFN

Search across all available documentation for this part.

Active

MONOLITHIC POWER SYSTEMS (MPS)

IC AMP CLASS D QUAD 30W 40QFN

Technical Specifications

Parameters and characteristics for this part

Specification	MP8049SDU-LF-Z

Features	Short-Circuit and Thermal Protection
Max Output Power x Channels @ Load	4, 30 W, 8 Ohm
Mounting Type	Surface Mount
Operating Temperature [Max]	125 ¯C
Operating Temperature [Min]	-40 °C
Output Type	4-Channel (Quad)

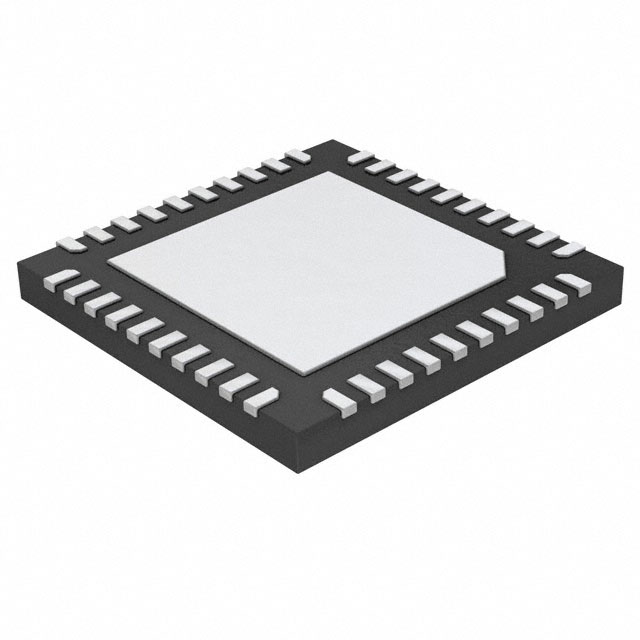

Package / Case	40-VFQFN Exposed Pad
Supplier Device Package	40-QFN (5x5)
Type	Class D

Part	Max Output Power x Channels @ Load	Package / Case	Output Type	Mounting Type	Operating Temperature [Min]	Operating Temperature [Max]	Features	Type	Supplier Device Package	Board Type	Utilized IC / Part	Supplied Contents	Voltage - Supply [Max]	Voltage - Supply [Min]	Max Output Power x Channels @ Load [custom]	Max Output Power x Channels @ Load [custom]	Max Output Power x Channels @ Load [custom]
MONOLITHIC POWER SYSTEMS (MPS) MP8049SDU-LF-Z	4 8 Ohm 30 W	40-VFQFN Exposed Pad	4-Channel (Quad)	Surface Mount	-40 °C	125 ¯C	Short-Circuit and Thermal Protection	Class D	40-QFN (5x5)
MONOLITHIC POWER SYSTEMS (MPS) EV8049S-U-00A			4-Channel (Stereo)							Fully Populated	MP8049S	Board(s)	26 V	5 V	8 Ohm	3 W	4

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Amplifier IC 4-Channel (Quad) Class D 40-QFN (5x5)
