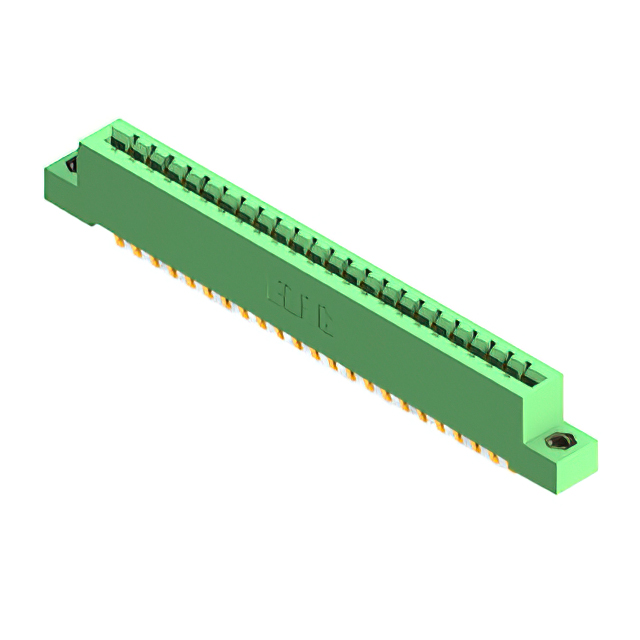

837-046-560-207
ActiveEDAC Inc.
CONN EDGE DUAL FMALE 46POS 0.156
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
837-046-560-207
ActiveEDAC Inc.
CONN EDGE DUAL FMALE 46POS 0.156
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 837-046-560-207 |
|---|---|
| Card Thickness [Max] | 1.78 mm |
| Card Thickness [Max] | 0.07 in |
| Card Thickness [Min] | 1.37 mm |
| Card Thickness [Min] | 0.054 " |
| Card Type | Non Specified - Dual Edge |
| Color | Green |
| Contact Finish | Gold |
| Contact Finish Thickness | 10 Áin |
| Contact Finish Thickness | 0.25 Ám |
| Contact Material | Copper Alloy |
| Contact Type | Cantilever |
| Features | Card Extender |
| Flange Feature | Top Opening, Flush Mount, M3, Threaded Insert |
| Gender | Female |
| Material - Insulation | Diallyl Phthalate (DAP) |
| Mounting Type | Board Edge, Straddle Mount |
| Number of Positions | 46 |
| Number of Positions/Bay/Row [custom] | 23 |
| Number of Rows | 2 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -40 °C |
| Pitch [x] | 0.156 in |
| Pitch [x] | 3.96 mm |
| Read Out | Dual |
| Termination | Solder |
| Termination Rows | 2 |
837-046 Series
...
| Part | Pitch [x] | Pitch [x] | Number of Positions | Mounting Type | Color | Contact Type | Card Type | Number of Positions/Bay/Row [custom] | Contact Material | Flange Feature | Flange Feature | Flange Feature | Card Thickness [Min] | Card Thickness [Min] | Card Thickness [Max] | Card Thickness [Max] | Termination | Contact Finish Thickness | Contact Finish Thickness | Contact Finish | Read Out | Termination Rows | Material - Insulation | Number of Rows | Gender | Operating Temperature [Max] | Operating Temperature [Min] | Flange Feature [diameter] | Flange Feature [diameter] | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
EDAC Inc. | 0.156 in | 3.96 mm | 46 | Through Hole | Green | Cantilever | Non Specified - Dual Edge | 23 | Copper Alloy | Side Mount Opening Unthreaded | 3.25 mm | 0.128 in | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Solder | 10 Áin | 0.25 Ám | Gold | Dual | 2 | Diallyl Phthalate (DAP) | 2 | Female | 125 °C | -40 °C | |||
EDAC Inc. | 0.156 in | 3.96 mm | 46 | Through Hole Right Angle | Green | Cantilever | Non Specified - Dual Edge | 23 | Copper Alloy | Floating Bobbin Flush Mount | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Solder | 10 Áin | 0.25 Ám | Gold | Dual | 2 | Diallyl Phthalate (DAP) | 2 | Female | 125 °C | -40 °C | 0.116 in | 2.95 mm | |||
EDAC Inc. | 0.156 in | 3.96 mm | 46 | Board Edge Straddle Mount | Green | Cantilever | Non Specified - Dual Edge | 23 | Copper Alloy | 4-40 Threaded Insert Top Mount Opening | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Solder | 10 Áin | 0.25 Ám | Gold | Dual | 2 | Diallyl Phthalate (DAP) | 2 | Female | 125 °C | -40 °C | Card Extender | ||||
EDAC Inc. | 0.156 in | 3.96 mm | 46 | Through Hole | Green | Cantilever | Non Specified - Dual Edge | 23 | Copper Alloy | Floating Bobbin Flush Mount | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Solder | 10 Áin | 0.25 Ám | Gold | Dual | 2 | Diallyl Phthalate (DAP) | 2 | Female | 125 °C | -40 °C | 0.116 in | 2.95 mm | |||
EDAC Inc. | 0.156 in | 3.96 mm | 46 | Through Hole Right Angle | Green | Cantilever | Non Specified - Dual Edge | 23 | Copper Alloy | Floating Bobbin Flush Mount | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Solder | 10 Áin | 0.25 Ám | Gold | Dual | 2 | Diallyl Phthalate (DAP) | 2 | Female | 125 °C | -40 °C | 0.116 in | 2.95 mm | |||
EDAC Inc. | 0.156 in | 3.96 mm | 46 | Board Edge Straddle Mount | Green | Cantilever | Non Specified - Dual Edge | 23 | Copper Alloy | 3.25 mm | 0.128 in | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Solder | 10 Áin | 0.25 Ám | Gold | Dual | 2 | Diallyl Phthalate (DAP) | 2 | Female | 125 °C | -40 °C | Card Extender | |||
EDAC Inc. | 0.156 in | 3.96 mm | 46 | Through Hole | Green | Cantilever | Non Specified - Dual Edge | 23 | Copper Alloy | Flush Mount Side Opening Unthreaded | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Solder | 10 Áin | 0.25 Ám | Gold | Dual | 2 | Diallyl Phthalate (DAP) | 2 | Female | 125 °C | -40 °C | 0.128 " | 3.25 mm | |||
EDAC Inc. | 0.156 in | 3.96 mm | 46 | Board Edge Straddle Mount | Green | Cantilever | Non Specified - Dual Edge | 23 | Copper Alloy | Flush Mount M3 Threaded Insert Top Opening | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Solder | 10 Áin | 0.25 Ám | Gold | Dual | 2 | Diallyl Phthalate (DAP) | 2 | Female | 125 °C | -40 °C | Card Extender | ||||
EDAC Inc. | 0.156 in | 3.96 mm | 46 | Through Hole Right Angle | Green | Cantilever | Non Specified - Dual Edge | 23 | Copper Alloy | Side Mount Opening Unthreaded | 3.25 mm | 0.128 in | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Solder | 10 Áin | 0.25 Ám | Gold | Dual | 2 | Diallyl Phthalate (DAP) | 2 | Female | 125 °C | -40 °C | |||
EDAC Inc. | 0.156 in | 3.96 mm | 46 | Board Edge Straddle Mount | Green | Cantilever | Non Specified - Dual Edge | 23 | Copper Alloy | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Solder | 10 Áin | 0.25 Ám | Gold | Dual | 2 | Diallyl Phthalate (DAP) | 2 | Female | 125 °C | -40 °C | Card Extender |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
837-046 Series
46 Position Female Connector Non Specified - Dual Edge Gold 0.156" (3.96mm) Green
