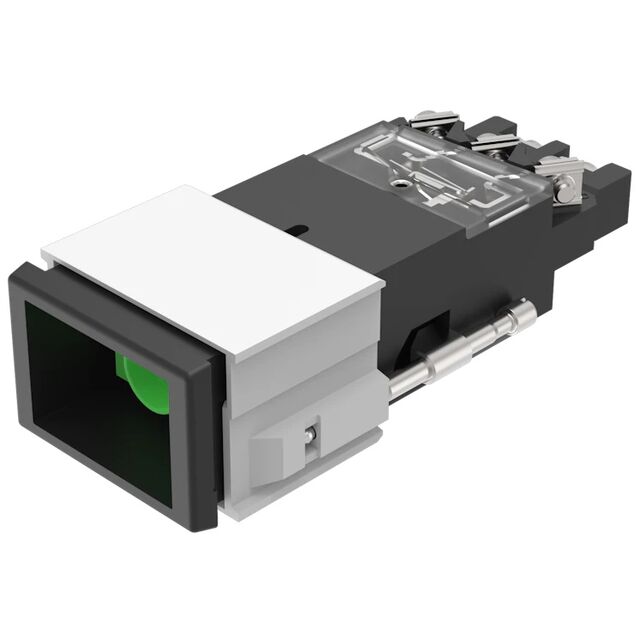

02-614.011

Active

EAO

SWITCH PB DPDT 10A 400V

Search across all available documentation for this part.

Active

EAO

SWITCH PB DPDT 10A 400V

Technical Specifications

Parameters and characteristics for this part

Specification	02-614.011

Actuator Marking	No Marking
Actuator Type	Rectangular, Button (Not Included)
Circuit	DPDT
Current Rating (Amps)	10 A
Ingress Protection	IP40
Mechanical Life	1000000 Cycles
Mounting Type	Panel Mount, Front
Operating Temperature [Max]	55 °C
Operating Temperature [Min]	-25 °C
Panel Cutout Dimensions [x]	29.2 mm
Panel Cutout Dimensions [y]	21.2 mm
Switch Function	On-On
Termination Style	Screw Terminal
Type	Standard
Voltage Rating - AC	400 V

Part	Termination Style	Mounting Type	Type	Operating Temperature [Max]	Operating Temperature [Min]	Ingress Protection	Switch Function	Circuit	Current Rating (Amps)	Mechanical Life	Actuator Marking	Panel Cutout Dimensions [x]	Panel Cutout Dimensions [y]	Voltage Rating - AC	Actuator Type
EAO 02-614.011	Screw Terminal	Panel Mount Front	Standard	55 °C	-25 °C	IP40	On-On	DPDT	10 A	1000000 Cycles	No Marking	29.2 mm	21.2 mm	400 V	Rectangular Button (Not Included)

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Pushbutton Switch DPDT Standard Panel Mount, Front
