50011/7035/15

Active

Jacob GmbH

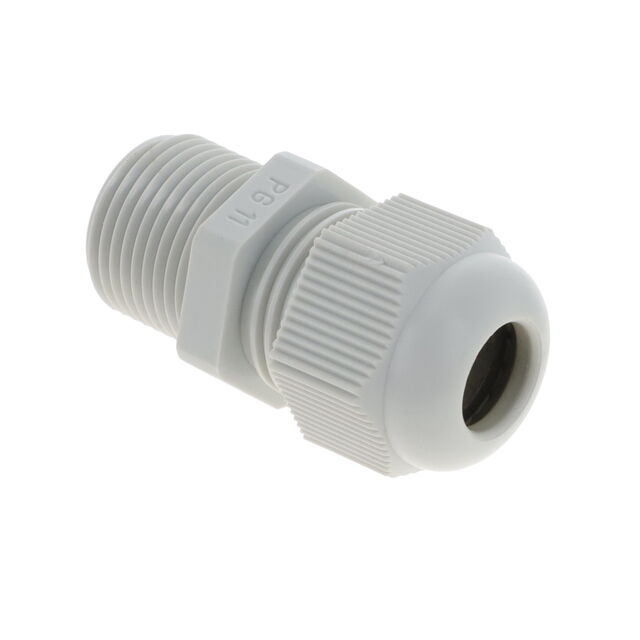

CABLE GLAND 5-10MM PG11 POLYAMID

Search across all available documentation for this part.

Active

Jacob GmbH

CABLE GLAND 5-10MM PG11 POLYAMID

Technical Specifications

Parameters and characteristics for this part

Specification	50011/7035/15

Color	Gray
Includes	Sealing Ring
Ingress Protection	IP68 - Dust Tight, Waterproof
Operating Temperature [Max]	100 °C
Operating Temperature [Min]	-40 °C
Outside Cable Diameter (Max) [Max] [diameter]	0.394 "
Outside Cable Diameter (Max) [Max] [diameter]	10 mm
Outside Cable Diameter (Min) [Min]	5 mm
Outside Cable Diameter (Min) [Min]	0.197 in
Thread Length	0.591 in
Thread Length	15 mm
Thread Size	PG11
Type	Cable Gland

Part	Outside Cable Diameter (Min) [Min]	Outside Cable Diameter (Min) [Min]	Outside Cable Diameter (Max) [Max] [diameter]	Outside Cable Diameter (Max) [Max] [diameter]	Includes	Thread Length	Thread Length	Ingress Protection	Type	Thread Size	Color	Operating Temperature [Max]	Operating Temperature [Min]
Jacob GmbH 50011M16BS7035	5 mm	0.197 in	0.394 "	10 mm	Strain Relief	0.591 in	15 mm	IP68 - Dust Tight Waterproof	Cable Gland	M16x1.5	Gray	100 °C	-40 °C
Jacob GmbH 50011/7035/15	5 mm	0.197 in	0.394 "	10 mm	Sealing Ring	0.591 in	15 mm	IP68 - Dust Tight Waterproof	Cable Gland	PG11	Gray	100 °C	-40 °C
Jacob GmbH 50011PABS7035	5 mm	0.197 in	0.394 "	10 mm	Strain Relief	0.315 in	8 mm	IP68 - Dust Tight Waterproof	Cable Gland	PG11	Gray	100 °C	-40 °C

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Cable Gland Polyamide (PA6), Nylon 6 PG11 Gray
