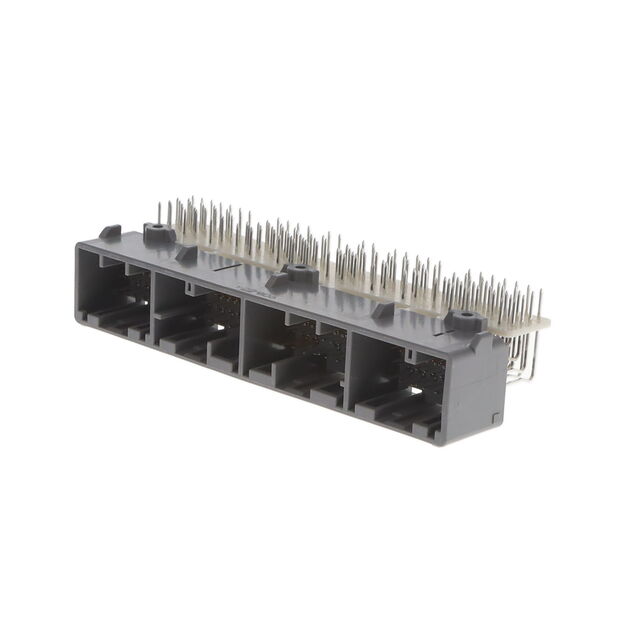

MX31135NQA

Active

JAE Electronics

CONN HEADER BRD EDGE 135POS

Search across all available documentation for this part.

Active

JAE Electronics

CONN HEADER BRD EDGE 135POS

Technical Specifications

Parameters and characteristics for this part

Specification	MX31135NQA

Connector Type	Header
Contact Finish - Mating	Gold
Contact Length - Post	0.157 in
Contact Length - Post	4 mm
Contact Material	Brass
Contact Shape	Square
Contact Type	Male Pin
Fastening Type	Latch Holder
Features	Mounting Flange
Insulation Color	Gray
Insulation Height	22.5 mm
Insulation Height	0.886 in
Mounting Type	Through Hole, Right Angle, Board Edge
Number of Positions	135
Number of Positions Loaded	All
Shrouding	Shrouded - 4 Wall
Style	Board to Cable/Wire
Termination	Solder

Part	Insulation Height	Insulation Height	Number of Positions	Contact Material	Connector Type	Contact Finish - Mating	Style	Contact Shape	Fastening Type	Features	Mounting Type	Termination	Contact Length - Post	Contact Length - Post	Number of Positions Loaded	Insulation Color	Shrouding	Contact Type
JAE Electronics MX31135NQA	22.5 mm	0.886 in	135	Brass	Header	Gold	Board to Cable/Wire	Square	Latch Holder	Mounting Flange	Board Edge Right Angle Through Hole	Solder	0.157 in	4 mm	All	Gray	Shrouded - 4 Wall	Male Pin

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Connector Header Board Edge, Through Hole, Right Angle 135 position
