200MDP3T1B1M1QE

Active

E-Switch

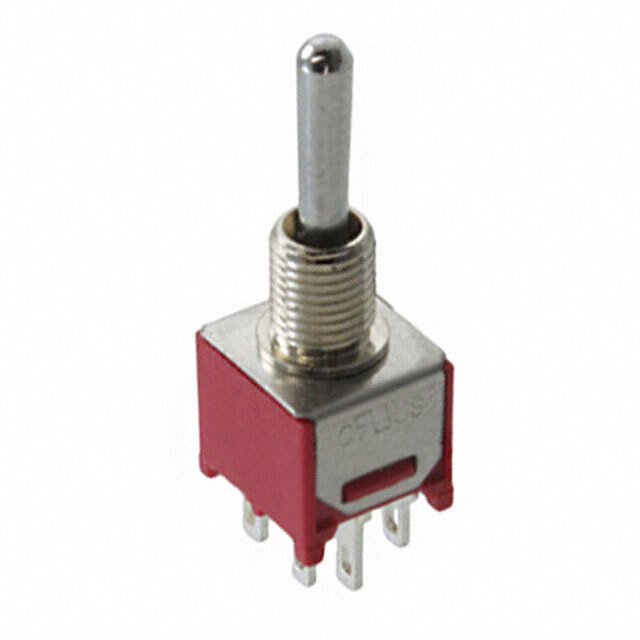

SWITCH TOGGLE DPDT 3A 120V

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

200MDP3T1B1M1QE

Active

E-Switch

SWITCH TOGGLE DPDT 3A 120V

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	200MDP3T1B1M1QE

Actuator Length [x]	9.4 mm
Actuator Material	Brass, Chrome Plated
Actuator Type	Standard Round
Bushing Thread	10-48
Circuit	DPDT
Current Rating (Amps)	3 A
Electrical Life	30000 Cycles
Features	Epoxy Sealed Terminals
Illumination	Non-Illuminated
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-30 ░C
Panel Cutout Dimensions [diameter]	4.95 mm
Switch Function	On-Off-On
Termination Style	Solder Lug
Voltage Rating - AC	120 V
Voltage Rating - DC	28 V

200MDP3 Series

Part	Current Rating (Amps)	Actuator Material	Switch Function	Actuator Length [x]	Voltage Rating - AC	Panel Cutout Dimensions [diameter]	Bushing Thread	Termination Style	Operating Temperature [Min]	Operating Temperature [Max]	Voltage Rating - DC	Electrical Life	Illumination	Circuit	Actuator Type	Features	Mounting Type
E-Switch 200MDP3T1B1M1QEH	3 A	Brass Chrome Plated	On-Off-On	9.4 mm	120 V	4.95 mm	10-48	Solder Lug	-30 ░C	85 °C	28 V	30000 Cycles	Non-Illuminated	DPDT	Standard Round	Epoxy Sealed Terminals
E-Switch 200MDP3T1B2M7QE	3 A	Brass Chrome Plated	On-Off-On	9.4 mm	120 V		Unthreaded	PC Pin	-30 ░C	85 °C	28 V	30000 Cycles	Non-Illuminated	DPDT	Standard Round	Epoxy Sealed Terminals	Right Angle Through Hole Vertical
E-Switch 200MDP3T4B6VS2QE	3 A	Brass Chrome Plated	On-Off-On	10.41 mm	120 V		Unthreaded	PC Pin	-30 ░C	85 °C	28 V	30000 Cycles	Non-Illuminated	DPDT	Standard Round	Epoxy Sealed Terminals	Through Hole
E-Switch 200MDP3T1B1M2RE	0.4 VA	Brass Chrome Plated	On-Off-On	9.4 mm	20 V	4.95 mm	10-48	PC Pin	-30 ░C	85 °C	20 V	30000 Cycles	Non-Illuminated	DPDT	Standard Round	Epoxy Sealed Terminals
E-Switch 200MDP3T1B1M1QE	3 A	Brass Chrome Plated	On-Off-On	9.4 mm	120 V	4.95 mm	10-48	Solder Lug	-30 ░C	85 °C	28 V	30000 Cycles	Non-Illuminated	DPDT	Standard Round	Epoxy Sealed Terminals
E-Switch 200MDP3T2B1M6QE	3 A	Brass Chrome Plated	On-Off-On	5.33 mm	120 V	4.95 mm	10-48	PC Pin	-30 ░C	85 °C	28 V	30000 Cycles	Non-Illuminated	DPDT	Standard Round	Epoxy Sealed Terminals	Panel Mount Right Angle
E-Switch 200MDP3T1B2M1RE	0.4 VA	Brass Chrome Plated	On-Off-On	9.4 mm	20 V		Unthreaded	Solder Lug	-30 ░C	85 °C	20 V	30000 Cycles	Non-Illuminated	DPDT	Standard Round	Epoxy Sealed Terminals
E-Switch 200MDP3T4B7M6QE	3 A	Brass Chrome Plated	On-Off-On	11.68 mm	120 V	0.25 in	1/4-40	PC Pin	-30 ░C	85 °C	28 V	30000 Cycles	Non-Illuminated	DPDT	Standard Round	Epoxy Sealed Terminals	Panel Mount Right Angle
E-Switch 200MDP3T4B5M6RE	0.4 VA	Brass Chrome Plated	On-Off-On	10.41 mm	20 V	0.25 in	1/4-40	PC Pin	-30 ░C	85 °C	20 V	30000 Cycles	Non-Illuminated	DPDT	Standard Round	Epoxy Sealed Terminals	Panel Mount Right Angle
E-Switch 200MDP3T1B5M2RE	0.4 VA	Brass Chrome Plated	On-Off-On	9.4 mm	20 V	0.25 in	1/4-40	PC Pin	-30 ░C	85 °C	20 V	30000 Cycles	Non-Illuminated	DPDT	Standard Round	Epoxy Sealed Terminals

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 4.73
		10	$ 4.09
		25	$ 3.85
		54	$ 3.67
		108	$ 3.51
		270	$ 3.31
		540	$ 3.16
		1026	$ 3.04

Description

General part information

200MDP3 Series

Toggle Switch DPDT Panel Mount
