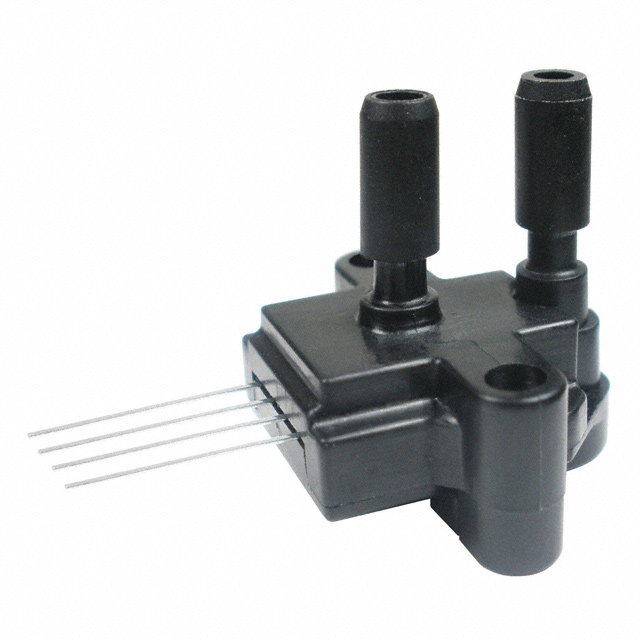

TSCSNBN030PGUCV

Obsolete

Honeywell Sensing and Productivity Solutions

SENSOR 30PSIG 0.19" .02625V 4SIP

Search across all available documentation for this part.

Obsolete

Honeywell Sensing and Productivity Solutions

SENSOR 30PSIG 0.19" .02625V 4SIP

Technical Specifications

Parameters and characteristics for this part

Part	Features	Operating Temperature [Max]	Operating Temperature [Min]	Port Size	Port Size	Pressure Type	Package / Case	Supplier Device Package	Accuracy	Termination Style	Maximum Pressure	Maximum Pressure	Output [Max]	Output Type	Mounting Type	Voltage - Supply [Max]	Voltage - Supply [Min]	Applications	Port Style	Operating Pressure	Operating Pressure	Output	Maximum Pressure	Maximum Pressure	Output
Honeywell Sensing and Productivity Solutions TSCSNBN030PGUCV	Temperature Compensated	85 °C	-40 °C	4.8 mm 4.826 mm	Dual Male Tube	Vented Gauge	4-SIP Dual Ports Same Side	4-SIP	0.15 %	PC Pin	115 PSI	792.9 kPa	26.25 mV	Wheatstone Bridge	Through Hole	12 V	1.5 V	Board Mount	Barbless	206.84 kPa	30 PSI
Honeywell Sensing and Productivity Solutions TSCSNBN005PDUCV	Temperature Compensated	85 °C	-40 °C	4.8 mm 4.826 mm	Dual Male Tube	Differential	4-SIP Dual Ports Same Side	4-SIP	0.15 %	PC Pin			50 mV	Wheatstone Bridge	Through Hole	12 V	1.5 V	Board Mount	Barbless	34.47 kPa	5 PSI	5 V	±30PSI	±206.84kPa
Honeywell Sensing and Productivity Solutions TSCSNBN015PDUCV	Temperature Compensated	85 °C	-40 °C	4.8 mm 4.826 mm	Dual Male Tube	Differential	4-SIP Dual Ports Same Side	4-SIP	0.15 %	PC Pin	60 PSI	413.69 kPa	52.5 mV	Wheatstone Bridge	Through Hole	12 V	1.5 V	Board Mount	Barbless	103.42 kPa	15 PSI				5 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Pressure Sensor 30PSI (206.84kPa) Vented Gauge Male - 0.19" (4.8mm) Tube, Dual 0 mV ~ 26.25 mV (5V) 4-SIP, Dual Ports, Same Side
