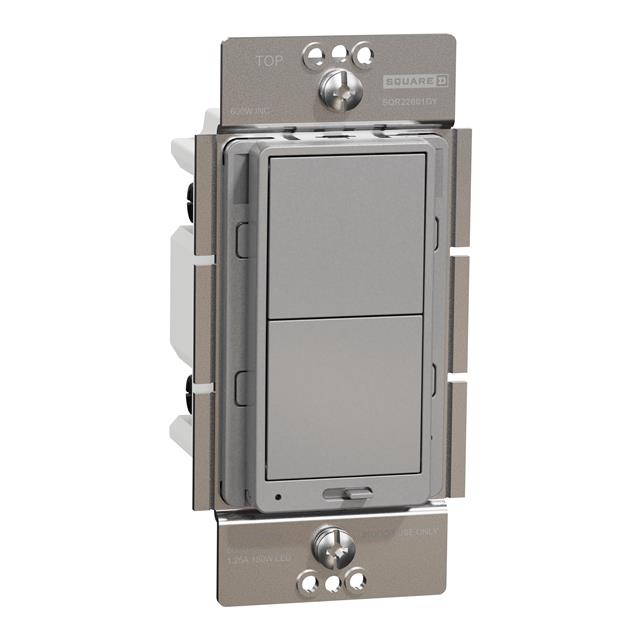

SQR22601GY

Active

SQUARE D BY SCHNEIDER ELECTRIC

SWITCH ROCKER SP3T 15A 120V

Search across all available documentation for this part.

Active

SQUARE D BY SCHNEIDER ELECTRIC

SWITCH ROCKER SP3T 15A 120V

Technical Specifications

Parameters and characteristics for this part

Part	Termination Style	Circuit	Color - Actuator/Cap	Actuator Marking	Voltage Rating - AC	Current Rating (Amps)	Actuator Type	Mounting Type	Operating Temperature [Max]
SQUARE D BY SCHNEIDER ELECTRIC SQR22603WH	Screw Terminal	SP3T	White	No Marking	120 V	15 A	Flat	Flange Panel Mount	40 °C
SQUARE D BY SCHNEIDER ELECTRIC SQR22601BK	Screw Terminal	SP3T	Black	No Marking	120 V	15 A	Flat	Flange Panel Mount	40 °C
SQUARE D BY SCHNEIDER ELECTRIC SQR22601LA	Screw Terminal	SP3T	Almond	No Marking	120 V	15 A	Flat	Flange Panel Mount	40 °C
SQUARE D BY SCHNEIDER ELECTRIC SQR22601WH	Screw Terminal	SP3T	White	No Marking	120 V	15 A	Flat	Flange Panel Mount	40 °C
SQUARE D BY SCHNEIDER ELECTRIC SQR22603BK	Screw Terminal	SP3T	Black	No Marking	120 V	5 A	Flat	Flange Panel Mount	40 °C
SQUARE D BY SCHNEIDER ELECTRIC SQR22601GY	Screw Terminal	SP3T		No Marking	120 V	15 A	Flat	Flange Panel Mount	40 °C

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 35.00

General part information

Rocker Switch SP3T 15A (AC) 120 V Panel Mount, Flange
