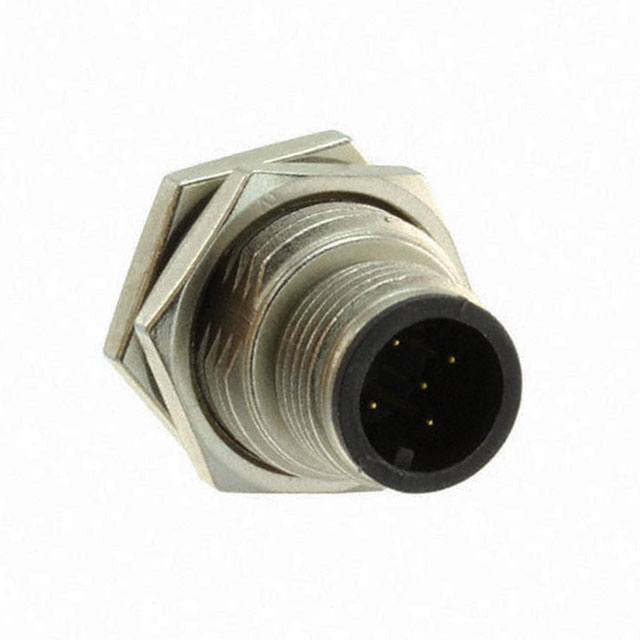

12-05PMMS-SF8001

Obsolete

Amphenol LTW

CONN PLUG MALE 5P GOLD SLDR CUP

Search across all available documentation for this part.

Obsolete

Amphenol LTW

CONN PLUG MALE 5P GOLD SLDR CUP

Technical Specifications

Parameters and characteristics for this part

Specification	12-05PMMS-SF8001

Color	Silver
Connector Type	Plug, Male Pins
Contact Finish - Mating	Gold
Contact Material	Copper Alloy
Current Rating (Amps)	4 A
Ingress Protection	IP68 - Dust Tight, Waterproof
Insert Material	Polyamide (PA), Nylon, Glass Filled
Mounting Feature	Bulkhead - Front Side Nut
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Orientation	A
Primary Material	Metal
Shell Finish	Nickel
Shell Material	Zinc Alloy
Shell Size - Insert	M12-5
Shielding	Shielded

Part	Contact Finish - Mating	Shell Material	Ingress Protection	Color	Shielding	Connector Type	Mounting Feature	Current Rating (Amps)	Insert Material	Primary Material	Orientation	Backshell Material, Plating	Shell Size - Insert	Operating Temperature [Min]	Operating Temperature [Max]	Shell Finish	Contact Material
Amphenol LTW 12-05PMMS-SH8003	Gold	Zinc Alloy	IP68 - Dust Tight Waterproof	Silver	Shielded	Male Pins Receptacle	Bulkhead - Rear Side Nut	4 A	Polyamide (PA) Nylon Glass Filled	Metal	A	Copper Alloy	M12-5	-40 °C	105 ░C	Nickel
Amphenol LTW 12-05PMMS-SF8001	Gold	Zinc Alloy	IP68 - Dust Tight Waterproof	Silver	Shielded	Male Pins Plug	Bulkhead - Front Side Nut	4 A	Polyamide (PA) Nylon Glass Filled	Metal	A		M12-5	-40 °C	105 ░C	Nickel	Copper Alloy

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

5 Position Circular Connector Plug, Male Pins Solder Cup
