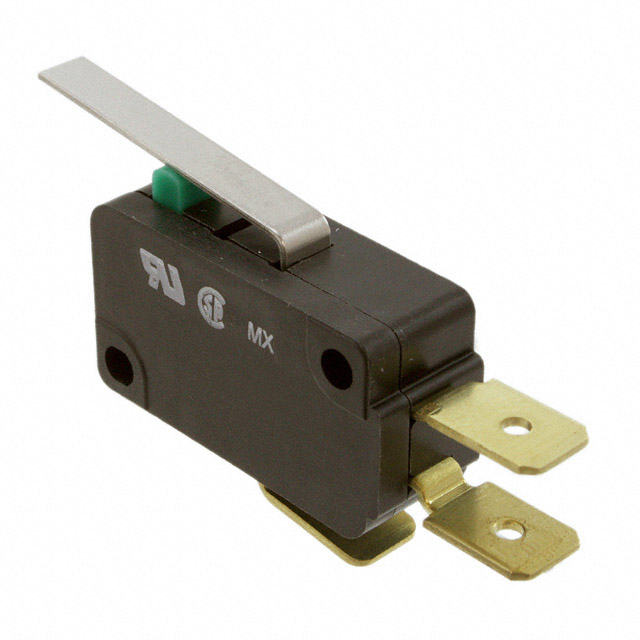

V7-3S17E9-022

Active

Honeywell Sensing and Productivity Solutions

SWITCH SNAP ACT SPDT 0.1A 125V

Search across all available documentation for this part.

Active

Honeywell Sensing and Productivity Solutions

SWITCH SNAP ACT SPDT 0.1A 125V

Technical Specifications

Parameters and characteristics for this part

Part	Electrical Life	Mechanical Life	Current Rating (Amps)	Mounting Type	Circuit	Differential Travel	Differential Travel	Switch Function	Operating Temperature [Max]	Operating Temperature [Min]	Operating Force	Overtravel	Overtravel	Operating Position	Operating Position	Termination Style	Release Force	Voltage Rating - AC	Pretravel	Pretravel	Actuator Type	Voltage Rating - DC
Honeywell Sensing and Productivity Solutions V7-3S17E9-022	100000 Cycles	10000000 Cycles	100 mA	Chassis Mount	SPDT	0.027 "	0.7 mm	On-Mom	85 °C	-40 °C	28 gf	1.7 mm	0.065 in	15.3 mm	0.602 "	Quick Connect - 0.250" (6.3mm)	1 gf	125 V	0.12 in	3 mm	Lever Straight
Honeywell Sensing and Productivity Solutions V7-3E27E9	100000 Cycles	10000000 Cycles	10 A 500 mA	Chassis Mount	SPST-NO	0.01 in	0.25 mm	Off-Mom	85 °C	-40 °C	50 gf	1.27 mm	0.05 in	14.7 mm	0.579 in	Quick Connect - 0.250" (6.3mm)		125 V	0.047 in	1.2 mm	Round (Pin Plunger)	125 VDC
Honeywell Sensing and Productivity Solutions V7-3E19E9-022-1
Honeywell Sensing and Productivity Solutions V7-3E19E9-000-1
Honeywell Sensing and Productivity Solutions V7-3E17D8-000-3		10000000 Cycles	10 A 500 mA	Chassis Mount	SPDT	0.01 in	0.25 mm	On-Mom	85 °C	-40 °C	50 gf	1.27 mm	0.05 in	14.7 mm	0.579 in	Quick Connect - 0.187" (4.7mm)		125 V	0.047 in	1.2 mm	Round (Pin Plunger)	125 VDC
Honeywell Sensing and Productivity Solutions V7-3S17D8-207

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Switch SPDT Chassis Mount
