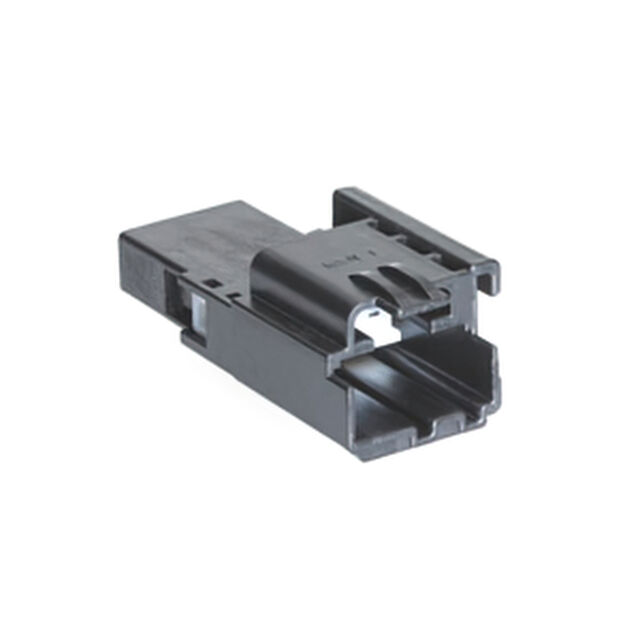

0310721072

Active

Molex

CONN HDR HSG 5POS 2.54MM

Search across all available documentation for this part.

Active

Molex

CONN HDR HSG 5POS 2.54MM

Technical Specifications

Parameters and characteristics for this part

Part	Connector Type	Pitch [x]	Pitch [x]	Number of Rows	Note	Color	Fastening Type	Contact Termination	Mounting Type	Contact Type	Features	Operating Temperature [Max]	Operating Temperature [Min]
Molex 0310721072	Header	2.54 mm	0.1 in	1	Contacts Not Included	Brown	Latch Holder	Crimp	Bracket Mount	Male Pin	Terminal Position Lock (TPA)	105 ░C	-55 °C
Molex 0310721042	Header	2.54 mm	0.1 in	1	Contacts Not Included	Brown	Latch Holder	Crimp	Free Hanging (In-Line)	Male Pin	Terminal Position Lock (TPA)	105 ░C	-55 °C
Molex 0310721070	Header	2.54 mm	0.1 in	1	Contacts Not Included	Black	Latch Holder	Crimp	Bracket Mount	Male Pin	Terminal Position Lock (TPA)	105 ░C	-55 °C
Molex 0310721040	Header	2.54 mm	0.1 in	1	Contacts Not Included	Black	Latch Holder	Crimp	Free Hanging (In-Line)	Male Pin	Terminal Position Lock (TPA)	105 ░C	-55 °C

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1200	$ 0.71

General part information

5 Rectangular Connectors - Housings Header Brown 0.100" (2.54mm)
