MENB1060A0551F01
ObsoleteSL POWER / Advanced Energy

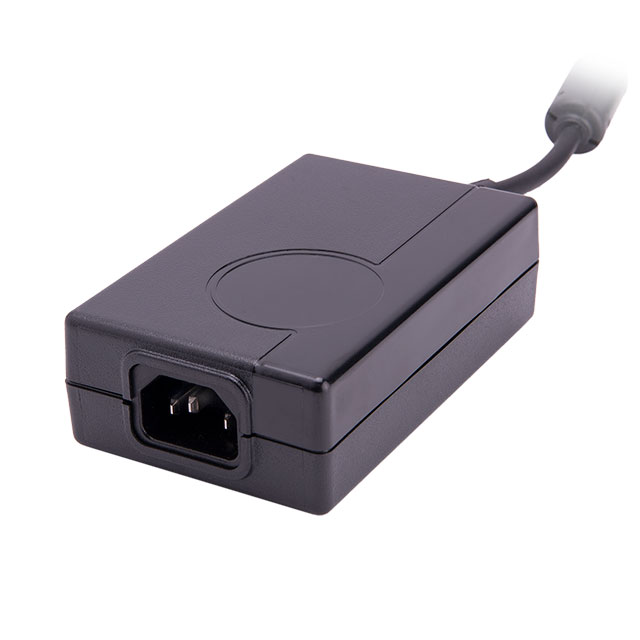

AC/DC DESKTOP ADAPTER 5V 35W
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
MENB1060A0551F01
ObsoleteSL POWER / Advanced Energy
AC/DC DESKTOP ADAPTER 5V 35W
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | MENB1060A0551F01 |
|---|---|
| Applications | Medical |
| Approval Agency | CE, cURus |
| Cord Length | 1.45 m |
| Cord Length | 57 " |
| Current - Output (Max) | 7 A |
| Efficiency | Level V |
| Form | Desktop (Class I) |
| Input Connector | IEC 320-C14 |
| Input Type | Cord |
| No Load Power Consumption | 300 mW |
| Operating Temperature [Max] | 40 °C |
| Operating Temperature [Min] | 0 °C |
| Output Connector | Rectangular, 6 Position |
| Power (Watts) | 35 W |
| Region Utilized | International |
| Size / Dimension [x] | 108 mm |
| Size / Dimension [x] | 4.25 in |
| Size / Dimension [y] | 67.7 mm |
| Size / Dimension [y] | 2.67 in |
| Size / Dimension [z] | 1.28 in |
| Size / Dimension [z] | 32.5 mm |
| Voltage - Input [Max] | 240 VAC |
| Voltage - Input [Min] | 100 VAC |
| Voltage - Output | 5 V |
| Weight | 0.882 lb |
| Weight | 400.07 g |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
MENB1060 Series
5V 35 W AC/DC External Desktop (Class I) Adapter Cord (Sold Separately) Input
Documents
Technical documentation and resources
