ST1225-20-001-A
ActiveAmphenol RF

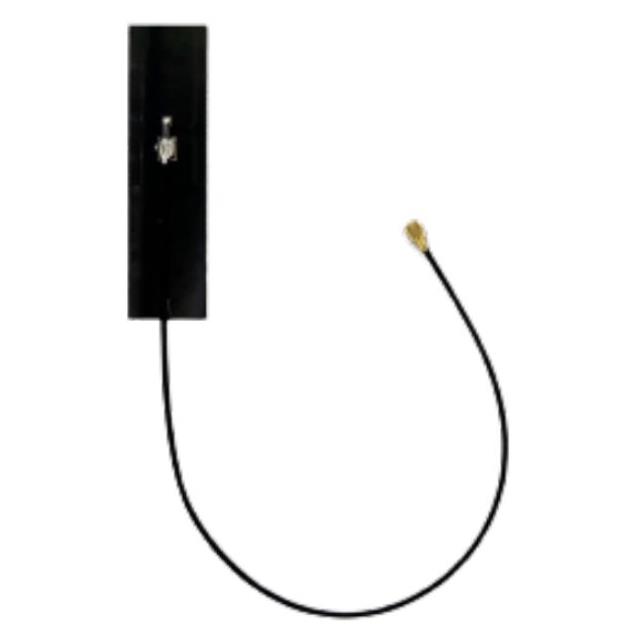

RF ANTENNA, 5.925 TO 7.125GHZ, PCB / IOT / ISM / WIFI 2 / WLAN / ZIGBEE, LINEAR, MHF1 CONNECTOR
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsTechnical Data Sheet EN
ST1225-20-001-A
ActiveAmphenol RF
RF ANTENNA, 5.925 TO 7.125GHZ, PCB / IOT / ISM / WIFI 2 / WLAN / ZIGBEE, LINEAR, MHF1 CONNECTOR
Deep-Dive with AI
DocumentsTechnical Data Sheet EN
Technical Specifications
Parameters and characteristics for this part
| Specification | ST1225-20-001-A |
|---|---|
| Antenna Type | PCB Trace |
| Applications | Wi-Fi |
| Features | Cable |
| Features | 100 mm |
| Frequency (Center/Band) | 2.45 GHz, 6.18 GHz |
| Frequency Group | 4 GHz |
| Frequency Group [Max] | 3 GHz |
| Frequency Group [Min] | 2 GHz |
| Frequency Range [Max] | 7.2 GHz, 2.5 GHz |
| Frequency Range [Min] | 5.15 GHz, 2.4 GHz |
| Gain | 3.4 dBi |
| Height (Max) [Max] | 0.028 in |
| Height (Max) [Max] | 0.7 mm |
| Mounting Type | Adhesive |
| Number of Bands | 2 |
| Power - Max [Max] | 1 W |
| Return Loss | -10 dB |
| RF Family/Standard | WiFi |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
ST1225-20 Series
RF ANTENNA Wi-Fi PCB Trace Adhesive
