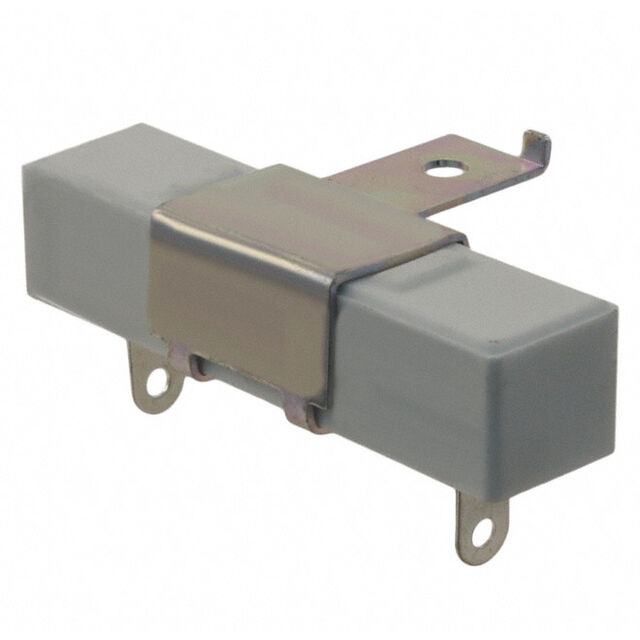

SQBW2010RJ
ActiveTE Connectivity Passive Product
RES CHAS MNT 10 OHM 5% 20W
Deep-Dive with AI
Search across all available documentation for this part.
SQBW2010RJ
ActiveTE Connectivity Passive Product
RES CHAS MNT 10 OHM 5% 20W
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | SQBW2010RJ |
|---|---|
| Coating, Housing Type | Ceramic |
| Composition | Wirewound |
| Features | Safety, Flame Proof, Moisture Resistant |
| Height - Seated (Max) [Max] [z] | 0.571 in |
| Height - Seated (Max) [Max] [z] | 14.5 mm |
| Lead Style | 0.25 in |
| Lead Style | 6.35 mm |
| Lead Style | Quick Connects |
| Mounting Feature | Brackets |
| Operating Temperature [Max] | 250 °C |
| Operating Temperature [Min] | -55 °C |
| Package / Case | Radial, Rectangular Case |
| Power (Watts) | 20 W |
| Resistance | 10 Ohms |
| Size / Dimension [x] | 2.362 in |
| Size / Dimension [x] | 60 mm |
| Size / Dimension [y] | 0.571 in |
| Size / Dimension [y] | 14.5 mm |
| Temperature Coefficient | 300 ppm/°C |
| Tolerance | 5 % |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 1.70 | |
| 10 | $ 1.43 | |||
| 25 | $ 1.40 | |||
| 50 | $ 1.32 | |||
| 100 | $ 1.09 | |||
| 250 | $ 0.99 | |||
| 500 | $ 0.97 | |||
Description
General part information
SQBW20 Series
10 Ohms ±5% 20W Wirewound Chassis Mount Resistor
