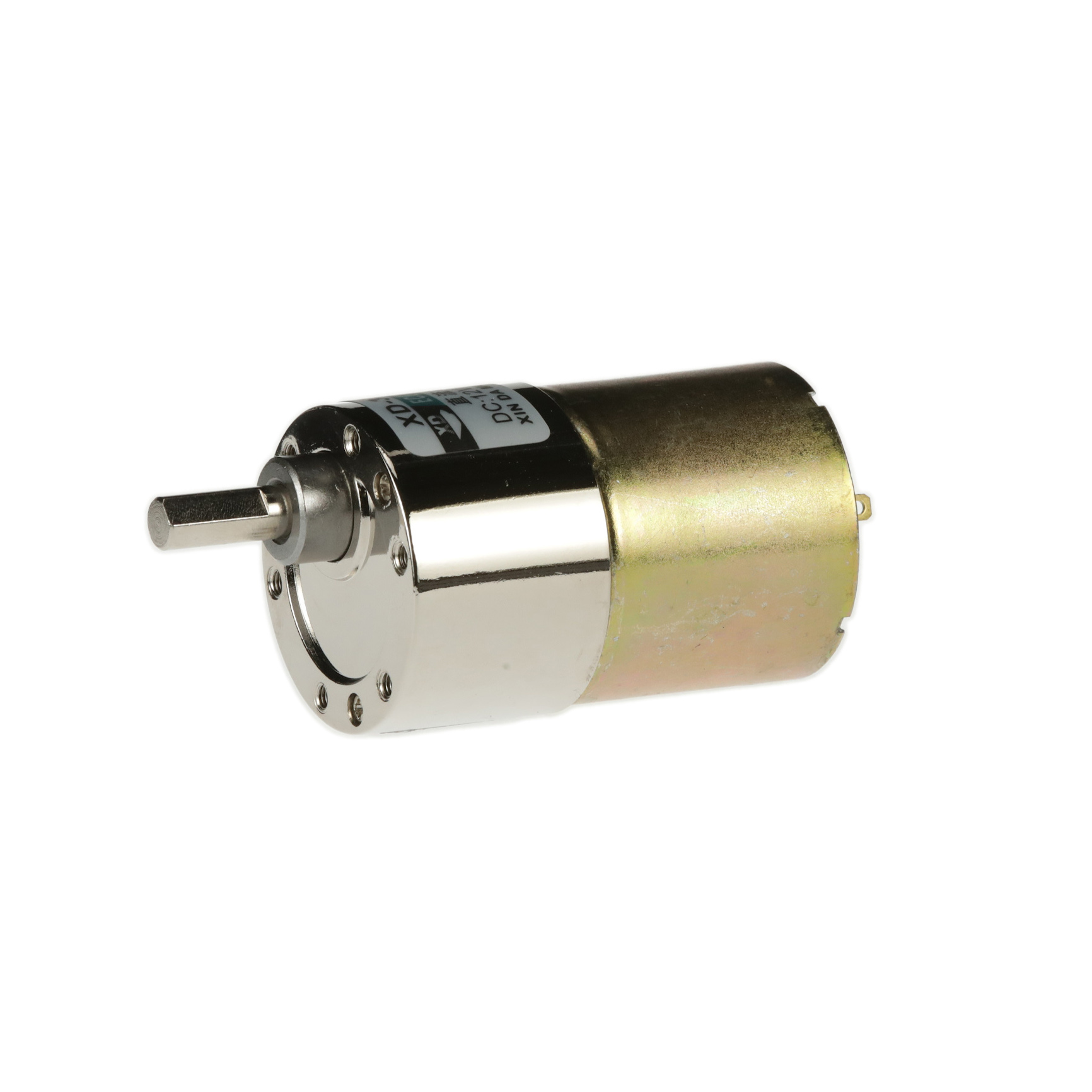

FIT0492-B
ActiveDFROBOT
GEARMOTOR 100 RPM 12V METAL
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | FIT0492-B |
|---|---|
| Diameter - Shaft [diameter] | 6 mm |
| Diameter - Shaft [diameter] | 0.236 in |
| Gear Reduction Ratio | 100 |
| Length - Shaft and Bearing [x] | 20 mm |
| Length - Shaft and Bearing [x] | 0.787 in |
| Mounting Hole Spacing | 1.22 in |
| Mounting Hole Spacing | 31 mm |
| Power - Rated | 5 W |
| RPM | 100 RPM |
| Size / Dimension | Round |
| Size / Dimension [diameter] | 37 mm |
| Size / Dimension [diameter] | 1.457 Dia |
| Termination Style | Solder Tab |
| Torque - Rated (oz-in / mNm) | 97.21 oz-in |
| Torque - Rated (oz-in / mNm) | 686.5 mNm |
| Type | DC Motor |
| Voltage - Rated | 12 VDC |
| Weight | 210.01 g |
| Weight | 0.463 lb |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 11.90 | |
Description
General part information
FIT0492 Series
DC Motor Gearmotor 100 RPM 5W 12VDC
