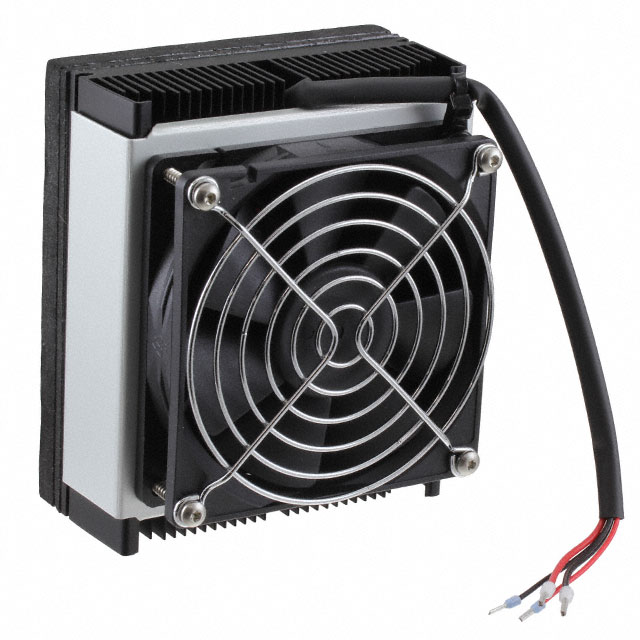

DA-044-12-02-00-00
ActiveLaird Thermal Systems, Inc.
THERMOELECT ASSY DIRECT-AIR 42W
Deep-Dive with AI
Search across all available documentation for this part.
DA-044-12-02-00-00
ActiveLaird Thermal Systems, Inc.
THERMOELECT ASSY DIRECT-AIR 42W
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | DA-044-12-02-00-00 |
|---|---|
| Current | 3.8 A |
| Dimensions - Overall [x] | 120 mm |
| Dimensions - Overall [y] | 100 mm |
| Dimensions - Overall [z] | 72 mm |
| Fan Location | Warm Side |
| Heat Transfer Type | Direct to Air |
| Operating Temperature [Max] | 46 °C |
| Operating Temperature [Min] | -10 °C |
| Power - Cooling | 42 W |
| Power - Input | 46 W |
| Voltage | 12 V |
| Weight | 589.7 g |
| Weight | 1.3 lbs |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 181.81 | |
Description
General part information
DA-044-12 Series
Direct to Air Thermoelectric Assembly 42 W
