A04ZR04ZR28H102A

Active

JST Sales America Inc.

JUMPER 04ZR-8M-P - 04ZR-8M-P 4"

Search across all available documentation for this part.

Active

JST Sales America Inc.

JUMPER 04ZR-8M-P - 04ZR-8M-P 4"

Technical Specifications

Parameters and characteristics for this part

Part	Cable Termination	Length	Length	Length	Pitch - Connector	Pitch - Connector	Number of Rows	Color	Connector Type	Number of Positions	Contact Finish	Length	Length [x]	Length [x]	Length [x]
JST Sales America Inc. A04ZR04ZR28H152A	IDC	152.4 mm	6 "	0.5 '	0.059 "	1.5 mm	1	Gray Individual	Socket to Socket Reversed	4	Tin
JST Sales America Inc. A04ZR04ZR28H305B	IDC	304.8 mm			0.059 "	1.5 mm	1	Gray Individual	Socket to Socket	4	Tin	1 ft
JST Sales America Inc. A04ZR04ZR28H51A	IDC	50.8 mm	2 "		0.059 "	1.5 mm	1	Gray Individual	Socket to Socket Reversed	4	Tin	0.167 '
JST Sales America Inc. A04ZR04ZR28H254A	IDC	254 mm	10 in		0.059 "	1.5 mm	1	Gray Individual	Socket to Socket Reversed	4	Tin	0.833 ft
JST Sales America Inc. A04ZR04ZR28H102A	IDC				0.059 "	1.5 mm	1	Gray Individual	Socket to Socket Reversed	4	Tin		4 "	0.333 ft	101.6 mm
JST Sales America Inc. A04ZR04ZR28H102B	IDC				0.059 "	1.5 mm	1	Gray Individual	Socket to Socket	4	Tin		4 "	0.333 ft	101.6 mm
JST Sales America Inc. A04ZR04ZR28H305A	IDC	304.8 mm			0.059 "	1.5 mm	1	Gray Individual	Socket to Socket Reversed	4	Tin	1 ft
JST Sales America Inc. A04ZR04ZR28H203B	IDC	203.2 mm	8 in		0.059 "	1.5 mm	1	Gray Individual	Socket to Socket	4	Tin	0.667 ft
JST Sales America Inc. A04ZR04ZR28H51B	IDC	50.8 mm	2 "		0.059 "	1.5 mm	1	Gray Individual	Socket to Socket	4	Tin	0.167 '
JST Sales America Inc. A04ZR04ZR28H203A	IDC	203.2 mm	8 in		0.059 "	1.5 mm	1	Gray Individual	Socket to Socket Reversed	4	Tin	0.667 ft

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

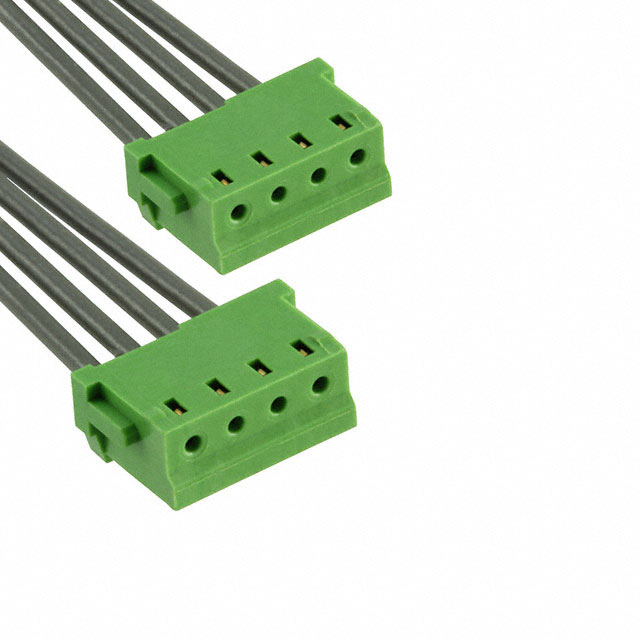

4 Position Cable Assembly Rectangular Socket to Socket, Reversed 0.333' (101.60mm, 4.00")
