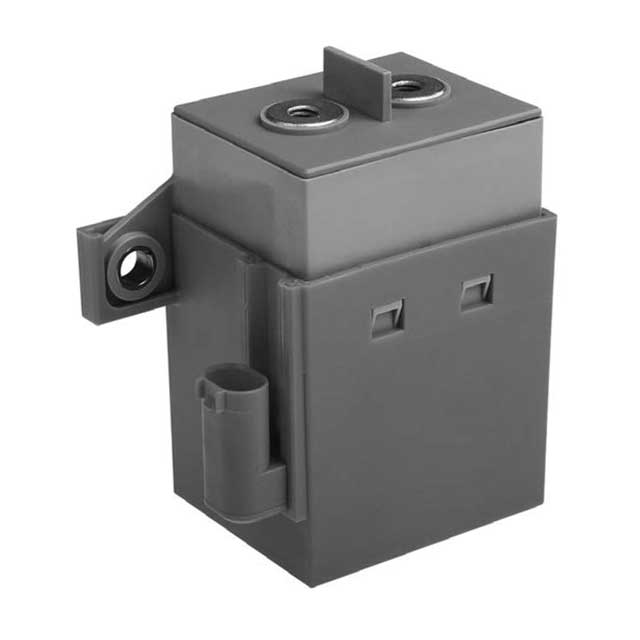

V23720A0001A001
ActiveTE Connectivity Potter & Brumfield Relays
RELAY CONTACTOR SPST 250A 12V
Deep-Dive with AI
Search across all available documentation for this part.
V23720A0001A001
ActiveTE Connectivity Potter & Brumfield Relays
RELAY CONTACTOR SPST 250A 12V
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | V23720A0001A001 |
|---|---|
| Coil Resistance | 4 Ohms |
| Coil Voltage | 12 VDC |
| Contact Form | SPST-NO (DM) (1 Form X) |
| Contact Material | Silver Alloy |
| Contact Rating (Current) | 250 A |
| Mounting Type | Chassis Mount |
| Operate Time | 25 ms |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Release Time | 25 ms |
| Switching Voltage | 450 VDC |
| Termination Style | Screw Terminal |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 133.48 | |
| 18 | $ 126.06 | |||
| 36 | $ 118.65 | |||
| 54 | $ 111.23 | |||
Description
General part information
V23720 Series
RELAY CONTACTOR SPST 250A 12V
