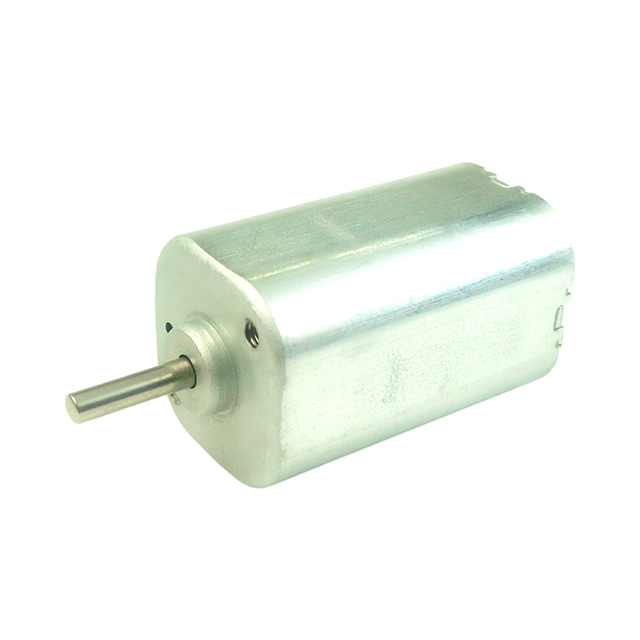

SE15K1BTYJ
ActiveNMB TECHNOLOGIES
STANDARD MOTOR 6700 RPM 12V
Deep-Dive with AI
Search across all available documentation for this part.
SE15K1BTYJ
ActiveNMB TECHNOLOGIES
STANDARD MOTOR 6700 RPM 12V
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | SE15K1BTYJ |
|---|---|
| Diameter - Shaft [diameter] | 2 mm |
| Diameter - Shaft [diameter] | 0.079 in |
| Function | Standard |
| Length - Shaft and Bearing [x] | 9.9 mm |
| Length - Shaft and Bearing [x] | 0.39 in |
| Motor Type | Brushed |
| Mounting Hole Spacing | 0.512 in |
| Mounting Hole Spacing | 13 mm |
| RPM | 6700 RPM |
| Size / Dimension [x] | 15 mm |
| Size / Dimension [x] | 0.591 in |
| Size / Dimension [y] | 15 mm |
| Size / Dimension [y] | 0.591 in |
| Termination Style | Connector |
| Torque - Rated (oz-in / mNm) | 0.354 oz-in |
| Torque - Rated (oz-in / mNm) | 2.5 mNm |
| Type | DC Motor |
| Voltage - Rated | 12 VDC |
| Weight | 20.87 g |
| Weight | 0.046 lb |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 9.10 | |
| 5 | $ 8.62 | |||
| 10 | $ 8.38 | |||
| 25 | $ 8.14 | |||
| 50 | $ 7.42 | |||
| 100 | $ 6.70 | |||
| 250 | $ 6.46 | |||
| 500 | $ 6.37 | |||
| 1000 | $ 5.98 | |||
Description
General part information
SE15K1BT Series
Brushed DC Motor Standard 6700 RPM 12VDC
