RT8575GQW
ActiveRichtek USA Inc.
IC LED DRV RGLTR PWM 16WDFN
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
RT8575GQW
ActiveRichtek USA Inc.
IC LED DRV RGLTR PWM 16WDFN
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | RT8575GQW |
|---|---|
| Applications | Backlight |
| Current - Output / Channel | 150 mA |
| Dimming | PWM |
| Frequency | 280 kHz |
| Internal Switch(s) | True |
| Mounting Type | Surface Mount |
| Number of Outputs | 4 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |

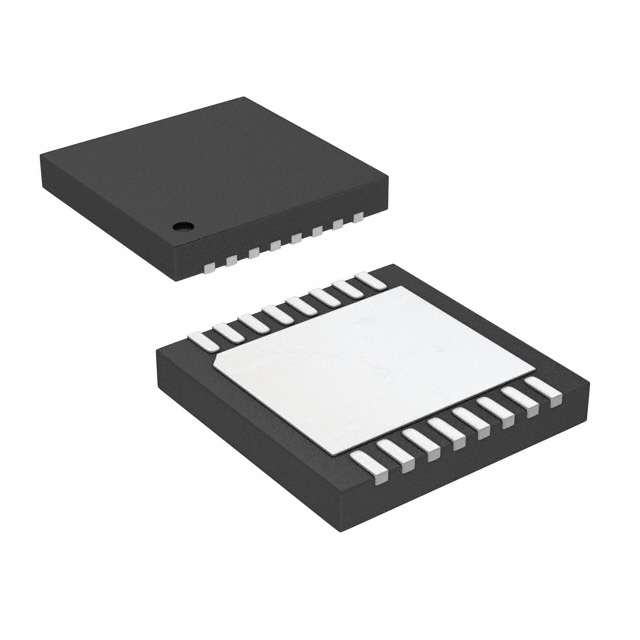

| Package / Case | 16-WFDFN Exposed Pad |
| Supplier Device Package | 16-WDFN (5x5) |
| Topology | Step-Up (Boost) |
| Type | DC DC Regulator |
| Voltage - Output | 60 V |
| Voltage - Supply (Max) [Max] | 24 V |
| Voltage - Supply (Min) [Min] | 4.2 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 2.44 | |
| 10 | $ 2.19 | |||
| 25 | $ 2.07 | |||
| 100 | $ 1.76 | |||
| 250 | $ 1.66 | |||
| 500 | $ 1.45 | |||
| Digi-Reel® | 1 | $ 2.44 | ||
| 10 | $ 2.19 | |||
| 25 | $ 2.07 | |||
| 100 | $ 1.76 | |||
| 250 | $ 1.66 | |||
| 500 | $ 1.45 | |||
| Tape & Reel (TR) | 1500 | $ 1.20 | ||
| 3000 | $ 1.12 | |||
| 7500 | $ 1.08 | |||
Description
General part information
RT8575 Series
LED Driver IC 4 Output DC DC Regulator Step-Up (Boost) PWM Dimming 150mA 16-WDFN (5x5)
