XS5C-D5S3

Active

Omron Electronics Inc-EMC Div

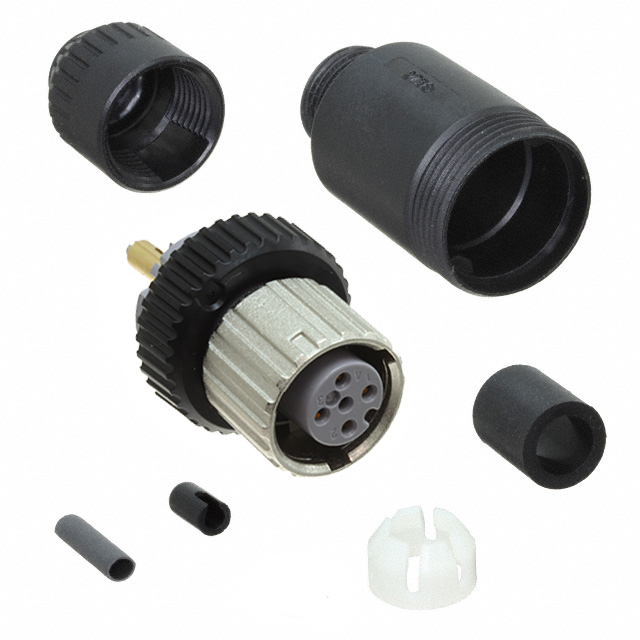

CONN RCPT FMALE 5POS GOLD SCREW

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

XS5C-D5S3

Active

Omron Electronics Inc-EMC Div

CONN RCPT FMALE 5POS GOLD SCREW

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	XS5C-D5S3

Backshell Material, Plating	Polybutylene Terephthalate (PBT)
Cable Opening [Max] [custom]	5 mm
Cable Opening [Max] [custom]	0.197 in
Cable Opening [Min] [custom]	4 mm
Cable Opening [Min] [custom]	0.157 in
Color	Black, Silver
Connector Type	Receptacle, Female Sockets
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	16 Áin
Contact Finish Thickness - Mating	0.41 Ám
Current Rating (Amps)	4 A
Fastening Type	Push-Twist
Features	Coupling Nut, Backshell
Ingress Protection	IP67 - Dust Tight, Waterproof
Insert Material	Polybutylene Terephthalate (PBT)
Material Flammability Rating	UL94 V-0
Mounting Type	Free Hanging (In-Line)
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-25 °C
Orientation	Keyed
Primary Material	Metal
Shell Finish	Nickel
Shell Material	Zinc Alloy
Shell Size - Insert	M12-5
Termination	Screw

XS5C Series

Part	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Material Flammability Rating	Shell Size - Insert	Color	Primary Material	Termination	Current Rating (Amps)	Fastening Type	Shell Finish	Shell Material	Insert Material	Connector Type	Backshell Material, Plating	Orientation	Cable Opening [Max] [custom]	Cable Opening [Max] [custom]	Cable Opening [Min] [custom]	Cable Opening [Min] [custom]	Contact Finish - Mating	Operating Temperature [Max]	Operating Temperature [Min]	Features	Mounting Type	Ingress Protection	Number of Positions	Type	Contact Type	Housing Color	Note	Contact Shape	Shielding	Cable Opening [diameter]	Cable Opening [diameter]	Cable Opening [diameter]	Cable Opening [Max] [diameter]	Cable Opening [Min] [diameter]	Cable Opening [Max] [diameter]	Cable Opening [Min] [diameter]	Contact Material	Cable Opening [Max] [diameter]
Omron Electronics Inc-EMC Div XS5C-D5S1	16 Áin	0.41 Ám	UL94 V-0	M12-5	Black Silver	Metal	Screw	4 A	Push-Twist	Nickel	Zinc Alloy	Polybutylene Terephthalate (PBT)	Receptacle Female Sockets	Polybutylene Terephthalate (PBT)	Keyed	0.236 in	6 mm	5 mm	0.197 in	Gold	70 °C	-25 °C	Backshell Coupling Nut	Free Hanging (In-Line)	IP67 - Dust Tight Waterproof
Omron Electronics Inc-EMC Div XS5C-D4C5			UL94 V-0	M12-4					Bayonet Lock	Nickel	Zinc Alloy	Polybutylene Terephthalate Resin (PBT)	Receptacle Housing		Keyed						70 °C	-25 °C	Backshell Coupling Nut	Free Hanging (In-Line)	IP67 - Dust Tight Waterproof	4	For Female Sockets	Crimp	Silver	Contacts Not Included	Circular	Unshielded
Omron Electronics Inc-EMC Div XS5C-D4S7	16 Áin	0.41 Ám	UL94 V-0	M12-4	Black Silver	Metal	Screw	4 A	Push-Twist	Nickel	Zinc Alloy	Polybutylene Terephthalate (PBT)	Receptacle Female Sockets	Polybutylene Terephthalate (PBT)	Keyed					Gold	70 °C	-25 °C	Backshell Coupling Nut	Free Hanging (In-Line)	IP67 - Dust Tight Waterproof	4							7 mm	0.276 in 0.315 in	8 mm
Omron Electronics Inc-EMC Div XS5C-D4S1	16 Áin	0.41 Ám	UL94 V-0	M12-4	Black Silver	Metal	Screw	4 A	Push-Twist	Nickel	Zinc Alloy	Polybutylene Terephthalate (PBT)	Receptacle Female Sockets	Polybutylene Terephthalate (PBT)	Keyed	0.236 in	6 mm	5 mm	0.197 in	Gold	70 °C	-25 °C	Backshell Coupling Nut	Free Hanging (In-Line)	IP67 - Dust Tight Waterproof	4
Omron Electronics Inc-EMC Div XS5C-D4S6	16 Áin	0.41 Ám	UL94 V-0	M12-4	Black Silver	Metal	Screw	4 A	Push-Twist	Nickel	Zinc Alloy	Polybutylene Terephthalate (PBT)	Receptacle Female Sockets	Polybutylene Terephthalate (PBT)	Keyed					Gold	70 °C	-25 °C	Backshell Coupling Nut	Free Hanging (In-Line) Right Angle	IP67 - Dust Tight Waterproof	4										0.157 in	0.118 in	4 mm	3 mm
Omron Electronics Inc-EMC Div XS5C-D5S3	16 Áin	0.41 Ám	UL94 V-0	M12-5	Black Silver	Metal	Screw	4 A	Push-Twist	Nickel	Zinc Alloy	Polybutylene Terephthalate (PBT)	Receptacle Female Sockets	Polybutylene Terephthalate (PBT)	Keyed	0.197 in	5 mm	4 mm	0.157 in	Gold	70 °C	-25 °C	Backshell Coupling Nut	Free Hanging (In-Line)	IP67 - Dust Tight Waterproof
Omron Electronics Inc-EMC Div XS5C-D426	16 Áin	0.41 Ám	UL94 V-0	M12-4	Black Silver	Metal		4 A	Push-Twist	Nickel	Zinc Alloy	Polybutylene Terephthalate (PBT)	Receptacle Female Sockets	Polybutylene Terephthalate (PBT)	Keyed					Gold	70 °C	-25 °C	Backshell Coupling Nut	Free Hanging (In-Line) Right Angle	IP67 - Dust Tight Waterproof	4										0.157 in	0.118 in	4 mm	3 mm	Brass
Omron Electronics Inc-EMC Div XS5C-D4C1			UL94 V-0	M12-4					Bayonet Lock	Nickel	Zinc Alloy	Polybutylene Terephthalate Resin (PBT)	Receptacle Housing		Keyed						70 °C	-25 °C	Backshell Coupling Nut	Free Hanging (In-Line)	IP67 - Dust Tight Waterproof	4	For Female Sockets	Crimp	Silver	Contacts Not Included	Circular	Unshielded
Omron Electronics Inc-EMC Div XS5C-D422	16 Áin	0.41 Ám	UL94 V-0	M12-4	Black Silver	Metal	Solder	4 A	Push-Twist	Nickel	Zinc Alloy	Polybutylene Terephthalate (PBT)	Receptacle Female Sockets	Polybutylene Terephthalate (PBT)	Keyed	0.236 in	6 mm	5 mm	0.197 in	Gold	70 °C	-25 °C	Backshell Coupling Nut	Free Hanging (In-Line) Right Angle	IP67 - Dust Tight Waterproof	4														Brass
Omron Electronics Inc-EMC Div XS5C-D4S9	16 Áin	0.41 Ám	UL94 V-0	M12-4	Black Silver	Metal	Screw	4 A	Push-Twist	Nickel	Zinc Alloy	Polybutylene Terephthalate (PBT)	Receptacle Female Sockets	Polybutylene Terephthalate (PBT)	Keyed					Gold	70 °C	-25 °C	Backshell Coupling Nut	Free Hanging (In-Line)	IP67 - Dust Tight Waterproof	4										0.276 in	0.236 in		6 mm		7 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	1	$ 15.27
		10	$ 14.54

Description

General part information

XS5C Series

5 Position Circular Connector Receptacle, Female Sockets Screw
