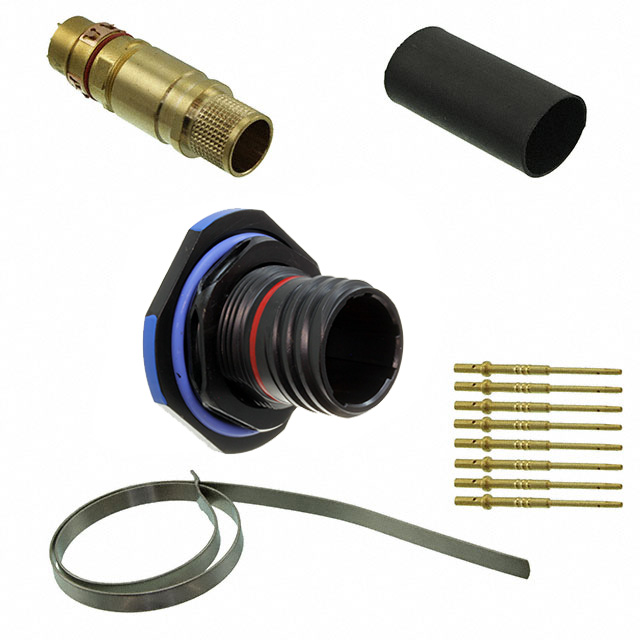

TV07UCOMCZN11S

Active

Amphenol Socapex

CONN RCPT FMALE 8POS GOLD CRIMP

Search across all available documentation for this part.

Active

Amphenol Socapex

CONN RCPT FMALE 8POS GOLD CRIMP

Technical Specifications

Parameters and characteristics for this part

Part	Shell Size - Insert	Number of Positions	Shell Finish	Mounting Feature	Shell Material	Operating Temperature [Min]	Operating Temperature [Max]	Color	Ingress Protection	Applications	Orientation	Primary Material	Termination	Contact Material	Contact Finish - Mating	Mounting Type	Shielding	Connector Type	Features
Amphenol Socapex TV07UCOMCIZN11SF459	11	8	Black Zinc Nickel	Bulkhead - Front Side Nut	Aluminum	-55 °C	125 °C	Black	IP68 - Dust Tight Waterproof	Aviation Marine Military	Keyed	Metal	Solder	Brass	Gold	Panel Mount Through Hole	Unshielded	Receptacle Female Sockets
Amphenol Socapex TV07UCOMCZN11S	11	8	Black Zinc Nickel	Bulkhead - Front Side Nut	Aluminum	-55 °C	125 °C	Black	IP68 - Dust Tight Waterproof	Aviation Marine Military		Metal	Crimp	Brass	Gold			Receptacle Female Sockets	Heat Shrink

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

8 (Data) Position Circular Connector Receptacle, Female Sockets Crimp

Technical documentation and resources
