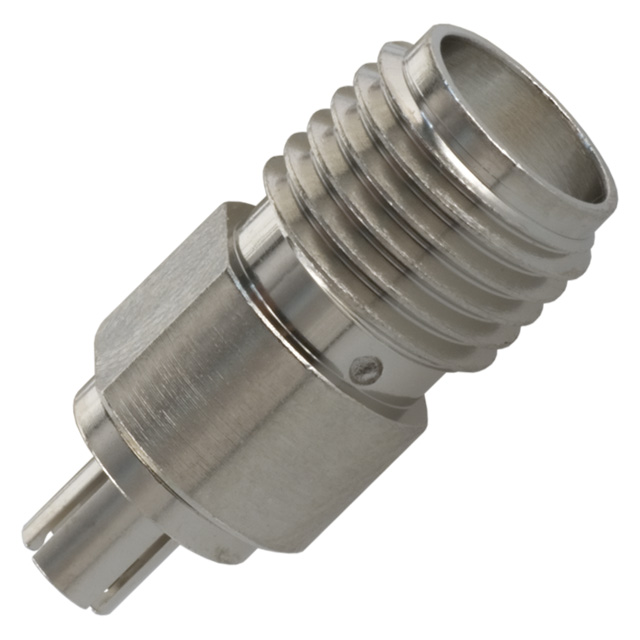

HRMJ-U.FLP(40)

Active

Hirose Electric USA, Inc.

CONN ADAPT SMA JACK TO U.FL PLUG

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

HRMJ-U.FLP(40)

Active

Hirose Electric USA, Inc.

CONN ADAPT SMA JACK TO U.FL PLUG

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	HRMJ-U.FLP(40)

Adapter Series	SMA to U.FL (UMCC)
Adapter Type	Plug to Jack
Body Finish	Nickel
Body Material	Brass
Center Contact Material	Beryllium Copper
Center Contact Plating	Gold
Center Gender	Female to Female
Conversion Type	Between Series
Convert From (Adapter End)	Female Socket, SMA Jack
Convert To (Adapter End)	Female Socket, U.FL (UMCC) Plug
Dielectric Material	Polytetrafluoroethylene (PTFE)
Fastening Type	Threaded, Snap-On
Frequency - Max [Max]	6000 MHz
Impedance	50 Ohms
Mating Cycles	500
Mounting Type	Free Hanging (In-Line)
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Style	Straight

HRMJ-U.FL Series

Part	Body Material	Center Contact Plating	Center Gender	Style	Adapter Type	Convert To (Adapter End)	Center Contact Material	Adapter Series	Mounting Type	Body Finish	Mating Cycles	Fastening Type	Frequency - Max [Max]	Conversion Type	Dielectric Material	Convert From (Adapter End)	Operating Temperature [Max]	Operating Temperature [Min]	Impedance
Hirose Electric USA, Inc. HRMJ-U.FL-066N1-A-100RS
Hirose Electric USA, Inc. HRMJ-U.FLP-ST1A(40)	Brass Stainless Steel	Gold	Female to Female	Straight	Plug to Jack	Female Socket U.FL (UMCC) Plug	Beryllium Copper	SMA to U.FL (UMCC)	Free Hanging (In-Line)	Gold Nickel	10000	Snap-On Threaded	6000 MHz	Between Series	Polytetrafluoroethylene (PTFE)	Female Socket SMA Jack	85 °C	-40 °C	50 Ohms
Hirose Electric USA, Inc. HRMJ-U.FL-088K2T-A-180RS
Hirose Electric USA, Inc. HRMJ-U.FLP-LA-1(40)	Brass Stainless Steel	Gold	Female to Female	Right Angle	Plug to Jack	Female Socket U.FL (UMCC) Plug	Beryllium Copper	SMA to U.FL (UMCC)	Free Hanging (In-Line) Right Angle	Gold Nickel	10000	Snap-On Threaded	3 GHz	Between Series	Polytetrafluoroethylene (PTFE)	Female Socket SMA Jack			50 Ohms
Hirose Electric USA, Inc. HRMJ-U.FL-066H-A-(85)RS
Hirose Electric USA, Inc. HRMJ-U.FLJ-PC-1	Stainless Steel	Gold		Straight	Jack to Jack	Male Pin U.FL (UMCC) Jack	Beryllium Copper Brass	SMA to U.FL (UMCC)	Through Hole Right Angle	Gold Nickel	500	Snap-On Threaded	6000 MHz	Between Series	Polytetrafluoroethylene (PTFE)	Female Socket SMA Jack	90 °C	-40 °C	50 Ohms
Hirose Electric USA, Inc. HRMJ-U.FL-068N1-A-100RS
Hirose Electric USA, Inc. HRMJ-U.FL-066N1-A-T-100RS
Hirose Electric USA, Inc. HRMJ-U.FLP(40)	Brass	Gold	Female to Female	Straight	Plug to Jack	Female Socket U.FL (UMCC) Plug	Beryllium Copper	SMA to U.FL (UMCC)	Free Hanging (In-Line)	Nickel	500	Snap-On Threaded	6000 MHz	Between Series	Polytetrafluoroethylene (PTFE)	Female Socket SMA Jack	85 °C	-40 °C	50 Ohms
Hirose Electric USA, Inc. HRMJ-U.FL-088K1T-A-100RS

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 41.05
		10	$ 31.74
		25	$ 28.79
		50	$ 26.79
		100	$ 24.99
		250	$ 22.86

Description

General part information

HRMJ-U.FL Series

Adapter Coaxial Connector SMA Jack, Female Socket To U.FL (UMCC) Plug, Female Socket 50 Ohms
