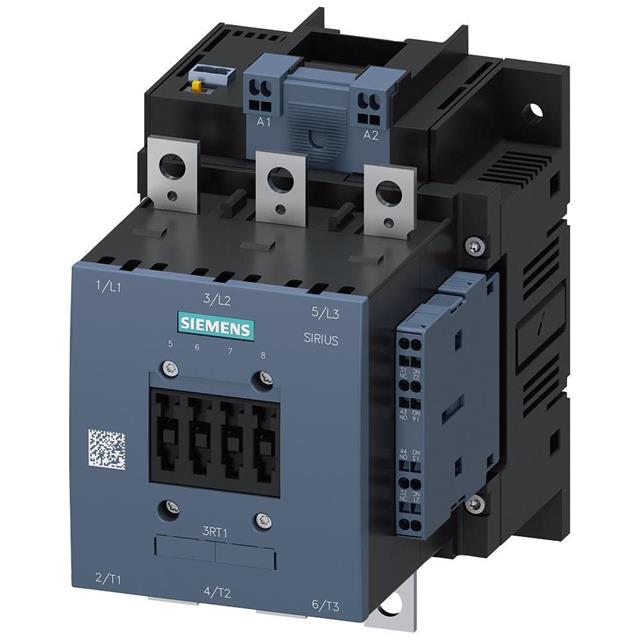

3RT10552NP36

Active

Siemens

CONTACTOR. 75 KW / 400 V / AC-3

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet SIRIUS Contactor Fail Safe Brochure +2

3RT10552NP36

Active

Siemens

CONTACTOR. 75 KW / 400 V / AC-3

Deep-Dive with AI

DocumentsDatasheet SIRIUS Contactor Fail Safe Brochure +2

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	3RT10552NP36

Coil Power	320 W
Coil Voltage [Max]	277 VAC
Coil Voltage [Min]	200 VAC/DC
Contact Form	3PST-NO (3 Form A)
Contact Rating (Current)	150 A
Features	Auxiliary Contacts
Mounting Type	Chassis Mount, DIN Rail
Operate Time	75 ms
Operating Temperature [Max]	60 °C
Operating Temperature [Min]	-25 °C
Release Time	90 ms
Switching Voltage	1000 VAC
Termination Style	Screw Terminal

3RT1055 Series

Part	Release Time	Features	Contact Rating (Current)	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Type	Termination Style	Operate Time	Contact Form	Switching Voltage	Coil Voltage [Max]	Coil Voltage [Min]	Coil Power
Siemens 3RT10556LA06	60 ms	Auxiliary Contacts	150 A	-25 °C	60 °C	Chassis Mount DIN Rail	Screw Terminal	95 ms	3PST-NO (3 Form A)	1000 VAC
Siemens 3RT10556NF36	90 ms	Auxiliary Contacts	150 A	-25 °C	60 °C	Chassis Mount DIN Rail	Screw Terminal	75 ms	3PST-NO (3 Form A)	1000 VAC	127 VAC/DC	96 VAC/DC	320 W
Siemens 3RT10557AB36	60 ms	Auxiliary Contacts	150 A	-25 °C	60 °C	Chassis Mount DIN Rail	Screw Terminal	95 ms	3PST-NO (3 Form A)	1000 VAC	26 VAC/DC	23 VAC/DC	360 W
Siemens 3RT10552NF36	90 ms	Auxiliary Contacts	150 A	-25 °C	60 °C	Chassis Mount DIN Rail	Screw Terminal	75 ms	3PST-NO (3 Form A)	1000 VAC	127 VAC/DC	96 VAC/DC	320 W
Siemens 3RT10556NB36	90 ms	Auxiliary Contacts	150 A	-25 °C	60 °C	Chassis Mount DIN Rail	Screw Terminal	75 ms	3PST-NO (3 Form A)	1000 VAC	27.3 VAC/DC	21 VAC/DC	320 W
Siemens 3RT10556AS36	60 ms	Auxiliary Contacts	150 A	-25 °C	60 °C	Chassis Mount DIN Rail	Screw Terminal	95 ms	3PST-NO (3 Form A)	1000 VAC	550 VAC/DC	500 VAC/DC	360 W
Siemens 3RT10556AB363PA0	60 ms	Auxiliary Contacts	150 A	-25 °C	60 °C	Chassis Mount DIN Rail	Screw Terminal	95 ms	3PST-NO (3 Form A)	1000 VAC	26 VAC/DC	23 VAC/DC	360 W
Siemens 3RT10556AT36	60 ms	Auxiliary Contacts	150 A	-25 °C	60 °C	Chassis Mount DIN Rail	Screw Terminal	95 ms	3PST-NO (3 Form A)	1000 VAC	600 VAC	575 VAC	360 W
Siemens 3RT10556AP30	60 ms	Auxiliary Contacts	150 A	-25 °C	60 °C	Chassis Mount DIN Rail	Screw Terminal	95 ms	3PST-NO (3 Form A)	1000 VAC	240 VAC	220 VAC	360 W
Siemens 3RT10552NP36	90 ms	Auxiliary Contacts	150 A	-25 °C	60 °C	Chassis Mount DIN Rail	Screw Terminal	75 ms	3PST-NO (3 Form A)	1000 VAC	277 VAC	200 VAC/DC	320 W

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 1142.37
