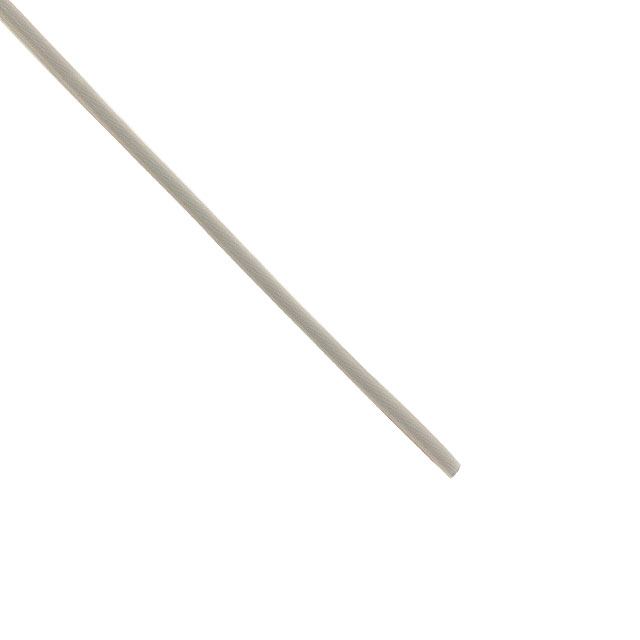

2924 SL005

Obsolete

ALPHA WIRE

HOOK-UP STRND 24AWG SLATE 100'

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

2924 SL005

Obsolete

ALPHA WIRE

HOOK-UP STRND 24AWG SLATE 100'

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	2924 SL005

Cable Type	Hook-Up
Conductor Material	Nickel Coated, Copper
Features	High Temperature, Chemical Resistant, UV Resistant
Jacket (Insulation) Diameter [diameter]	0.89 mm
Jacket (Insulation) Diameter [diameter]	0.035 in
Jacket (Insulation) Thickness	0.006 in
Jacket (Insulation) Thickness	0.15 mm
Jacket Color	Slate
Length [x]	30.5 m
Length [x]	100 ft
Operating Temperature [Max]	300 °C
Operating Temperature [Min]	-150 °C
Ratings	UL Style 11540
Voltage	600 V
Wire Gauge	24 AWG

2924 Series

Part	Ratings	Jacket Color	Voltage	Length	Length	Cable Type	Features	Wire Gauge	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Operating Temperature [Max]	Operating Temperature [Min]	Conductor Material	Length [x]	Length [x]
ALPHA WIRE 2924 YL001	UL Style 11540	Yellow	600 V	1000 ft	304.8 m	Hook-Up	Chemical Resistant High Temperature UV Resistant	24 AWG	0.89 mm	0.035 in	0.006 in	0.15 mm	300 °C	-150 °C	Copper Nickel Coated
ALPHA WIRE 2924 RD005	UL Style 11540	Red	600 V			Hook-Up	Chemical Resistant High Temperature UV Resistant	24 AWG	0.89 mm	0.035 in	0.006 in	0.15 mm	300 °C	-150 °C	Copper Nickel Coated	30.5 m	100 ft
ALPHA WIRE 2924 RD001	UL Style 11540	Red	600 V	1000 ft	304.8 m	Hook-Up	Chemical Resistant High Temperature UV Resistant	24 AWG	0.89 mm	0.035 in	0.006 in	0.15 mm	300 °C	-150 °C	Copper Nickel Coated
ALPHA WIRE 2924 BR005	UL Style 11540	Brown	600 V			Hook-Up	Chemical Resistant High Temperature UV Resistant	24 AWG	0.89 mm	0.035 in	0.006 in	0.15 mm	300 °C	-150 °C	Copper Nickel Coated	30.5 m	100 ft
ALPHA WIRE 2924 VI001	UL Style 11540	Violet	600 V	1000 ft	304.8 m	Hook-Up	Chemical Resistant High Temperature UV Resistant	24 AWG	0.89 mm	0.035 in	0.006 in	0.15 mm	300 °C	-150 °C	Copper Nickel Coated
ALPHA WIRE 2924 SL005	UL Style 11540	Slate	600 V			Hook-Up	Chemical Resistant High Temperature UV Resistant	24 AWG	0.89 mm	0.035 in	0.006 in	0.15 mm	300 °C	-150 °C	Copper Nickel Coated	30.5 m	100 ft
ALPHA WIRE 2924 SL001	UL Style 11540	Slate	600 V	1000 ft	304.8 m	Hook-Up	Chemical Resistant High Temperature UV Resistant	24 AWG	0.89 mm	0.035 in	0.006 in	0.15 mm	300 °C	-150 °C	Copper Nickel Coated
ALPHA WIRE 2924 GR005	UL Style 11540	Green	600 V			Hook-Up	Chemical Resistant High Temperature UV Resistant	24 AWG	0.89 mm	0.035 in	0.006 in	0.15 mm	300 °C	-150 °C	Copper Nickel Coated	30.5 m	100 ft
ALPHA WIRE 2924 BK005	UL Style 11540	Black	600 V			Hook-Up	Chemical Resistant High Temperature UV Resistant	24 AWG	0.89 mm	0.035 in	0.006 in	0.15 mm	300 °C	-150 °C	Copper Nickel Coated	30.5 m	100 ft

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

2924 Series

24 AWG Hook-Up Wire 19/36 Slate 600V 100.0' (30.5m)
