WR9QE500LCPNAIMR6B

Active

GlobTek, Inc.

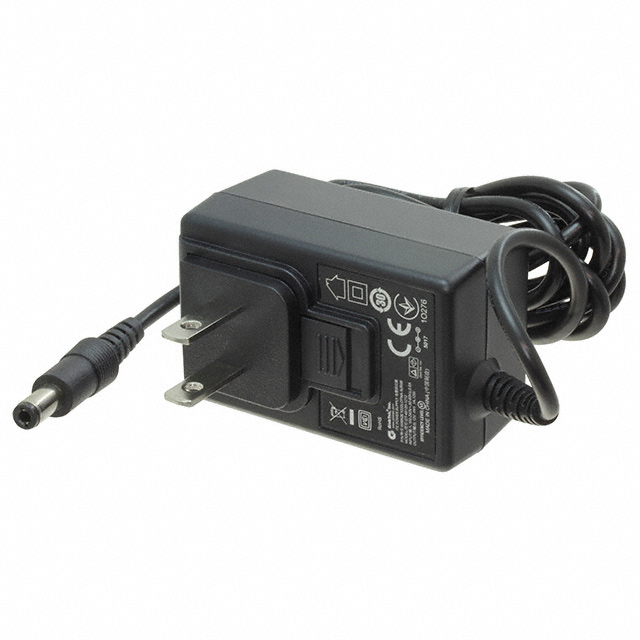

AC/DC WALL MOUNT ADAPTER 12V 6W

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

WR9QE500LCPNAIMR6B

Active

GlobTek, Inc.

AC/DC WALL MOUNT ADAPTER 12V 6W

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	WR9QE500LCPNAIMR6B

Applications	Household Appliances, ITE (Commercial), Medical
Approval Agency	ETL, UL, FCC, UKRSepro, BSI, cETLus, PSE, S-Mark, CB, CE, LPS, CCC, VCCI, EAC
Cord Length	1.5 m
Cord Length	59 in
Current - Output (Max) [Max]	500 mA
Efficiency	Level VI
Form	Wall Mount (Class II)
Input Connector	Multi-Blade
Input Type	Multi-Blade (Sold Separately)
No Load Power Consumption [Max]	75 mW
Operating Temperature [Max]	50 °C
Operating Temperature [Min]	-20 C
Output Connector	Barrel Plug
Output Connector [diameter]	5.5 mm, 2.5 mm
Output Connector [x]	11 mm
Polarization	Positive Center
Power (Watts)	6 W
Region Utilized	International
Size / Dimension [x]	1.71 "
Size / Dimension [x]	43.5 mm
Size / Dimension [y]	74 mm
Size / Dimension [y]	2.91 "
Size / Dimension [z]	36.8 mm
Size / Dimension [z]	1.45 in
Standard Number	1310, 60950-1, 60335-1, 62368-1, 60601-1-2, 60601-1-11
Voltage - Input [Max]	264 VAC
Voltage - Input [Min]	90 VAC
Voltage - Output	12 V

WR9QE500 Series

Part	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [z]	Current - Output (Max) [Max]	Form	Operating Temperature [Max]	Operating Temperature [Min]	No Load Power Consumption [Max]	Input Connector	Input Type	Voltage - Output	Standard Number	Efficiency	Cord Length	Cord Length	Region Utilized	Approval Agency	Power (Watts)	Polarization	Output Connector	Output Connector [diameter]	Output Connector [x]	Voltage - Input [Min]	Voltage - Input [Max]	Applications
GlobTek, Inc. WR9QE500LCPNA-N(R6B)	1.59 in	40.5 mm	30 mm	2.52 "	64 mm	1.18 in	500 mA	Wall Mount (Class II)	40 °C	0 °C	75 mW	Multi-Blade	Multi-Blade (Sold Separately)	12 V	60950-1	Level VI	1.83 m	72 in	International	BSI CB CCC CE cULus EAC FCC GS LPS PSE RCM UKRSepro VCCI	6 W	Positive Center	Barrel Plug	2.5 mm 5.5 mm	11 mm	90 VAC	264 VAC	ITE (Commercial)
GlobTek, Inc. WR9QE500LCPNAIMR6B	1.71 "	43.5 mm	36.8 mm	2.91 "	74 mm	1.45 in	500 mA	Wall Mount (Class II)	50 °C	-20 C	75 mW	Multi-Blade	Multi-Blade (Sold Separately)	12 V	1310 60335-1 60601-1-11 60601-1-2 60950-1 62368-1	Level VI	1.5 m	59 in	International	BSI CB CCC CE cETLus EAC ETL FCC LPS PSE S-Mark UKRSepro UL VCCI	6 W	Positive Center	Barrel Plug	2.5 mm 5.5 mm	11 mm	90 VAC	264 VAC	Household Appliances ITE (Commercial) Medical
GlobTek, Inc. WR9QE500T00-IMR6B	1.71 "	43.5 mm	36.8 mm	2.91 "	74 mm	1.45 in	500 mA	Wall Mount (Class II)	50 °C	-20 C	75 mW	Multi-Blade	Multi-Blade (Sold Separately)	12 V	1310 60335-1 60601-1-11 60601-1-2 60950-1 62368-1	Level VI	1.5 m	59 in	International	BSI CB CCC CE cETLus EAC ETL FCC LPS PSE S-Mark UKRSepro UL VCCI	6 W		1.3mm x 3.5mm Barrel Plug Kit			90 VAC	264 VAC	Household Appliances ITE (Commercial) Medical
GlobTek, Inc. WR9QE500T00NAIMR6B	1.71 "	43.5 mm	36.8 mm	2.91 "	74 mm	1.45 in	500 mA	Wall Mount (Class II)	50 °C	-20 C	75 mW	Multi-Blade	Multi-Blade (Sold Separately)	12 V	1310 60335-1 60601-1-11 60601-1-2 60950-1 62368-1	Level VI	1.5 m	59 in	International	BSI CB CCC CE cETLus EAC ETL FCC LPS PSE S-Mark UKRSepro UL VCCI	6 W		1.3mm x 3.5mm Barrel Plug Kit			90 VAC	264 VAC	Household Appliances ITE (Commercial) Medical

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 9.29
		5	$ 8.83
		10	$ 8.60
		25	$ 8.13
		60	$ 7.67
		120	$ 7.43
		300	$ 6.97
		540	$ 6.50

Description

General part information

WR9QE500 Series

12V 6 W AC/DC External Wall Mount (Class II) Adapter Multi-Blade (Sold Separately) Input
