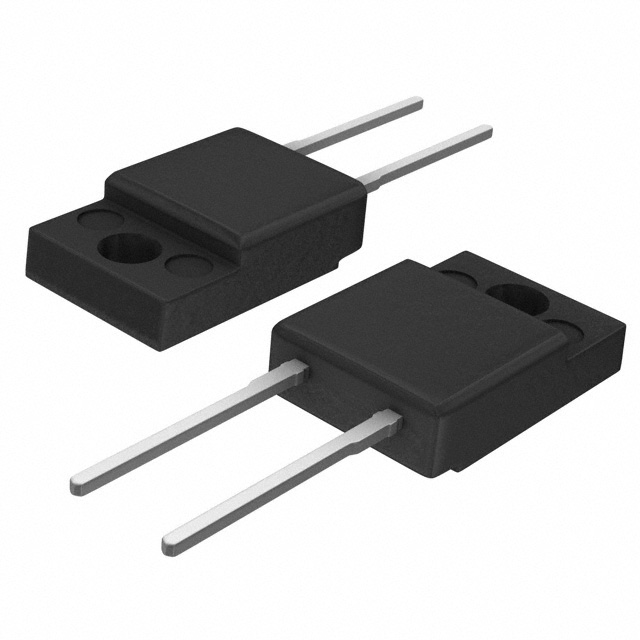

UF808F_T0_00001

Active

Panjit International Inc.

ITO-220AC, ULTRA

Search across all available documentation for this part.

Active

Panjit International Inc.

ITO-220AC, ULTRA

Technical Specifications

Parameters and characteristics for this part

Specification	UF808F_T0_00001

Current - Average Rectified (Io)	8 A
Current - Reverse Leakage @ Vr	1 µA
Mounting Type	Through Hole
Operating Temperature - Junction [Max]	150 °C
Operating Temperature - Junction [Min]	-55 °C
Package / Case	TO-220-2 Full Pack, Isolated Tab
Speed	200 mA, 500 ns
Supplier Device Package	ITO-220AC
Technology	Standard
Voltage - DC Reverse (Vr) (Max) [Max]	800 V
Voltage - Forward (Vf) (Max) @ If	1.7 V

Part	Supplier Device Package	Current - Average Rectified (Io)	Technology	Package / Case	Operating Temperature - Junction [Max]	Operating Temperature - Junction [Min]	Voltage - DC Reverse (Vr) (Max) [Max]	Mounting Type	Speed	Voltage - Forward (Vf) (Max) @ If	Current - Reverse Leakage @ Vr
Panjit International Inc. UF808F_T0_00001	ITO-220AC	8 A	Standard	TO-220-2 Full Pack Isolated Tab	150 °C	-55 °C	800 V	Through Hole	200 mA 500 ns	1.7 V	1 µA
Panjit International Inc. UF808_T0_00001	TO-220AC	8 A	Standard	TO-220-2	150 °C	-55 °C	800 V	Through Hole	200 mA 500 ns	1.7 V	1 µA

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Diode 800 V 8A Through Hole ITO-220AC
