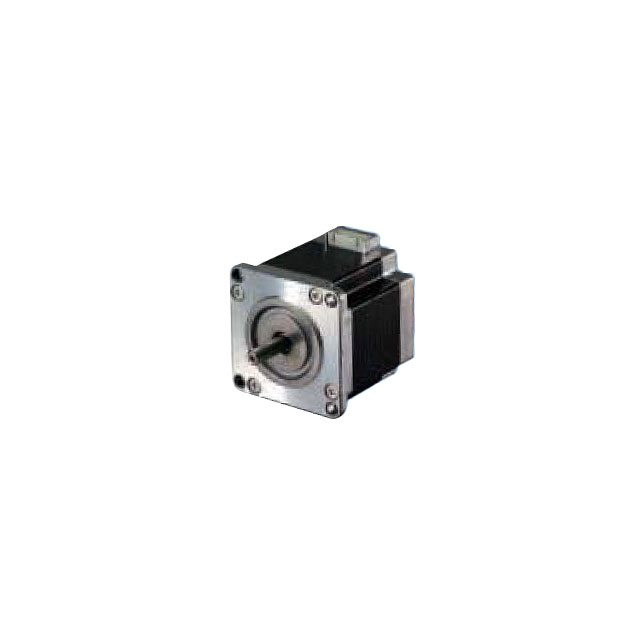

23KY-K040B
ActiveNMB TECHNOLOGIES
STEPPER MOTOR HYBRID BIPOLAR 24V
Deep-Dive with AI
Search across all available documentation for this part.
23KY-K040B
ActiveNMB TECHNOLOGIES
STEPPER MOTOR HYBRID BIPOLAR 24V
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 23KY-K040B |
|---|---|
| Coil Resistance | 900 mOhms |
| Coil Type | Bipolar |
| Current Rating (Amps) | 2.8 A |
| Diameter - Shaft [diameter] | 0.25 in |
| Diameter - Shaft [diameter] | 6.35 mm |
| Features | Round Shaft |
| Mounting Hole Spacing | 47.14 mm |
| Mounting Hole Spacing | 1.856 in |
| NEMA Frame Size | 23 |
| Rotor Inertia | 300 gcm˛ |
| Size / Dimension [x] | 56.4 mm |
| Size / Dimension [x] | 2.22 in |
| Size / Dimension [y] | 56.4 mm |
| Size / Dimension [y] | 2.22 in |
| Step Angle | 0.9 ° |
| Steps per Revolution | 400 |
| Termination Style | Connector |
| Torque - Holding (oz-in / mNm) | 148.71 oz-in |
| Torque - Holding (oz-in / mNm) | 1050 mNm |
| Type | Hybrid |
| Voltage - Rated | 24 VDC |
| Weight | 453.59 g |
| Weight | 1 lbs |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 30 | $ 55.55 | |
Description
General part information
23KY Series
Bipolar Stepper Motor Hybrid Frame Size 23 400.0 Step 2.8 A 24VDC
