PT-39-R-C21-MPD

Obsolete

Luminus Devices Inc.

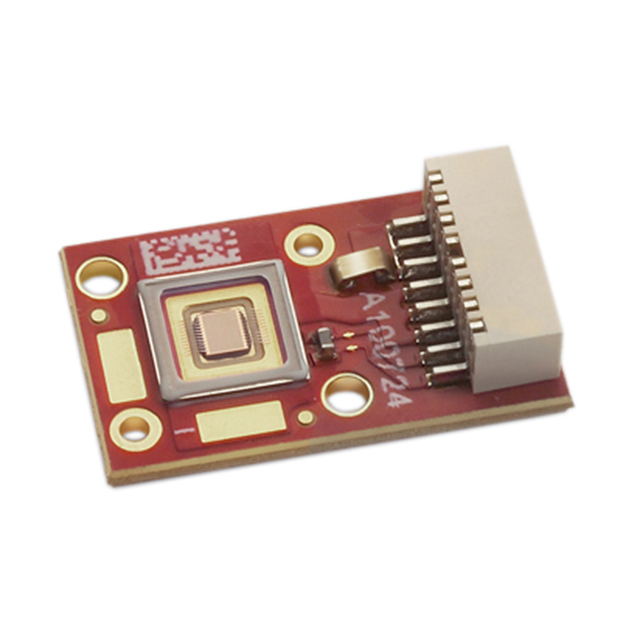

LED MOD PT-39 RED RECT

Search across all available documentation for this part.

Obsolete

Luminus Devices Inc.

LED MOD PT-39 RED RECT

Technical Specifications

Parameters and characteristics for this part

Specification	PT-39-R-C21-MPD

Color	Red
Configuration	Rectangle
Current - Max [Max]	9.8 A
Current - Test	9.8 A
Features	With Connector
Height [z]	6.3 mm
Lens Type	Flat
Light Emitting Surface (LES) [x]	1.87 mm
Light Emitting Surface (LES) [y]	2.09 mm
Lumens/Watt @ Current - Test	26 lm/W
Luminous Flux @ Current/Temperature	665 lm
Size / Dimension [x]	26.5 mm
Size / Dimension [y]	16 mm
Type	LED Module
Voltage - Forward (Vf) (Typ)	2.6 V
Wavelength	623 nm

Part	Current - Test	Configuration	Voltage - Forward (Vf) (Typ)	Size / Dimension [x]	Size / Dimension [y]	Luminous Flux @ Current/Temperature	Light Emitting Surface (LES) [y]	Light Emitting Surface (LES) [x]	Current - Max [Max]	Lens Type	Height [z]	Lumens/Watt @ Current - Test	Type	Features	Color	Wavelength	Luminous Flux @ Current/Temperature [Min]	Luminous Flux @ Current/Temperature [Max]
Luminus Devices Inc. PT-39-R-C21-MPD	9.8 A	Rectangle	2.6 V	26.5 mm	16 mm	665 lm	2.09 mm	1.87 mm	9.8 A	Flat	6.3 mm	26 lm/W	LED Module	With Connector	Red	623 nm
Luminus Devices Inc. PT-39-G-C21-MPC	9.8 A	Rectangle	4.9 V	26.5 mm	16 mm	1240 lm	2.09 mm	1.87 mm	9.8 A	Flat	6.3 mm	26 lm/W	LED Module	With Connector	Green	525 nm
Luminus Devices Inc. PT-39-R-C21-MPB													LED Module
Luminus Devices Inc. PT-39-G-C21-MPE	9.8 A	Rectangle	4.9 V	26.5 mm	16 mm	1430 lm	2.09 mm	1.87 mm	9.8 A	Flat	6.3 mm	30 lm/W	LED Module	With Connector	Green	525 nm	1200 lm	1660 lm
