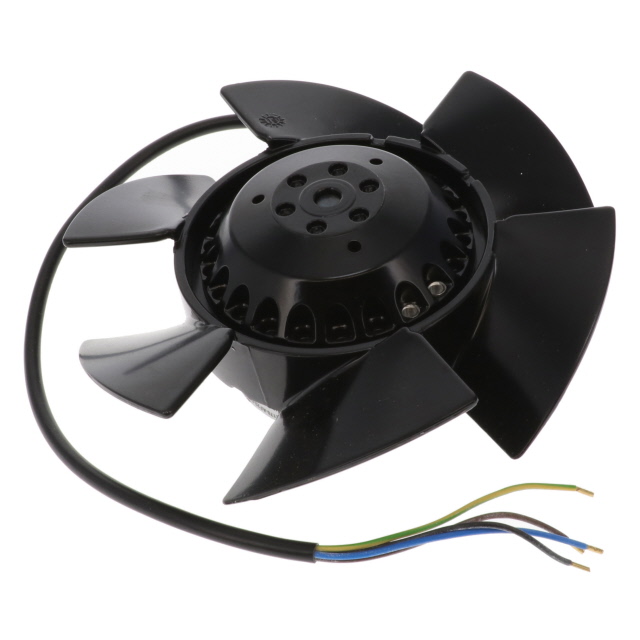

A2E170-AF23-01

Active

ebm-papst Inc.

AC AXIAL FAN

Search across all available documentation for this part.

Active

ebm-papst Inc.

AC AXIAL FAN

Technical Specifications

Parameters and characteristics for this part

Specification	A2E170-AF23-01

Approval Agency	CCC, EAC, CE
Bearing Type	Ball
Current Rating (Amps)	0.23 A
Fan Type	Tubeaxial
Features	Capacitor, Thermal Overload Protector (TOP)
Ingress Protection	IP44
Material - Blade	Aluminum
Operating Temperature [Max]	60 °C
Operating Temperature [Min]	-25 °C
Power (Watts)	53 W
RPM	3150 RPM
Size / Dimension [diameter]	170 mm
Termination	4 Wire Leads with Splice Terminals
Voltage - Rated	230 VAC
Width	65 mm

Part	RPM	Termination	Approval Agency	Bearing Type	Width	Size / Dimension [diameter]	Ingress Protection	Material - Blade	Features	Current Rating (Amps)	Operating Temperature	Operating Temperature	Fan Type	Power (Watts)	Voltage - Rated	Operating Temperature [Min]	Operating Temperature [Max]
ebm-papst Inc. A2E170-AF23-02	3150 RPM	4 Wire Leads with Splice Terminals	CE EAC	Ball	65 mm	170 mm	IP44	Aluminum	Capacitor Thermal Overload Protector (TOP)	0.23 A	60 °C	60 °C	Tubeaxial	53 W	230 VAC
ebm-papst Inc. A2E170-AF23-01	3150 RPM	4 Wire Leads with Splice Terminals	CCC CE EAC	Ball	65 mm	170 mm	IP44	Aluminum	Capacitor Thermal Overload Protector (TOP)	0.23 A			Tubeaxial	53 W	230 VAC	-25 °C	60 °C
ebm-papst Inc. A2E170-AF23-11	3150 RPM	4 Wire Leads with Splice Terminals		Ball	65 mm	170 mm	IP44	Aluminum	Capacitor Thermal Overload Protector (TOP)	0.23 A			Tubeaxial	53 W	230 VAC	-25 °C	60 °C

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Fan Tubeaxial 230VAC Round - 170mm Dia Ball 4 Wire Leads with Splice Terminals
