09300242298

Active

HARTING Technology Group

HAN B BASE SURFACE HC 1 LEVER METAL COVE ROHS COMPLIANT: NA

Search across all available documentation for this part.

Active

HARTING Technology Group

HAN B BASE SURFACE HC 1 LEVER METAL COVE ROHS COMPLIANT: NA

Technical Specifications

Parameters and characteristics for this part

Specification	09300242298

Connector Type	Base - Box Mount
Housing Color	Gray
Housing Finish	Powder Coated
Housing Material	Die Cast, Aluminum
Ingress Protection	IP65 - Dust Tight, Water Resistant
Lock Location	Locking Clip (1) on Base Bottom
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Size	24 B
Size / Dimension [x]	5.669 "
Size / Dimension [x]	144 mm
Size / Dimension [y]	57 mm
Size / Dimension [y]	2.244 "
Size / Dimension [z]	3.181 "
Size / Dimension [z]	80.8 mm
Style	Side Entry
Thread Size	PG29

Part	Size	Housing Material	Thread Size	Style	Housing Finish	Ingress Protection	Lock Location	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Housing Color	Operating Temperature [Max]	Operating Temperature [Min]	Connector Type	Size / Dimension [z]	Size / Dimension [y]
HARTING Technology Group 09300242298	24 B	Aluminum Die Cast	PG29	Side Entry	Powder Coated	IP65 - Dust Tight Water Resistant	Locking Clip (1) on Base Bottom	5.669 "	3.181 "	80.8 mm	57 mm	2.244 "	144 mm	Gray	125 °C	-40 °C	Base - Box Mount
HARTING Technology Group 09300242262	24 B	Aluminum Die Cast	PG21	Side Entry	Powder Coated	IP65 - Dust Tight Water Resistant	Locking Clip (2) on Hood	5.669 "	3.181 "	80.8 mm	57 mm	2.244 "	144 mm	Gray	125 °C	-40 °C	Base - Box Mount
HARTING Technology Group 09300242295	24 B	Aluminum Die Cast	PG21	Side Entry	Powder Coated	IP65 - Dust Tight Water Resistant	Locking Clip (1) on Base Bottom						5.669 in 144 mm	Gray	125 °C	-40 °C	Base - Box Mount	2.197 in 55.8 mm	2.244 " 57 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

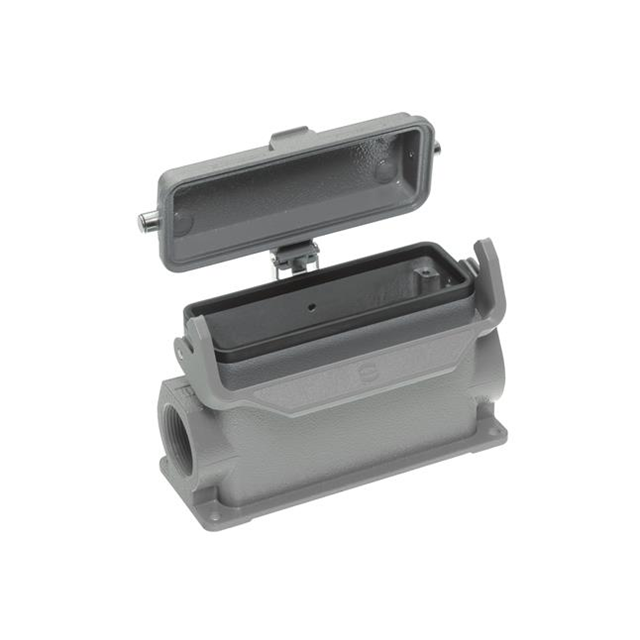

Base - Box Mount Connector Side Entry PG29 24B IP65 - Dust Tight, Water Resistant
