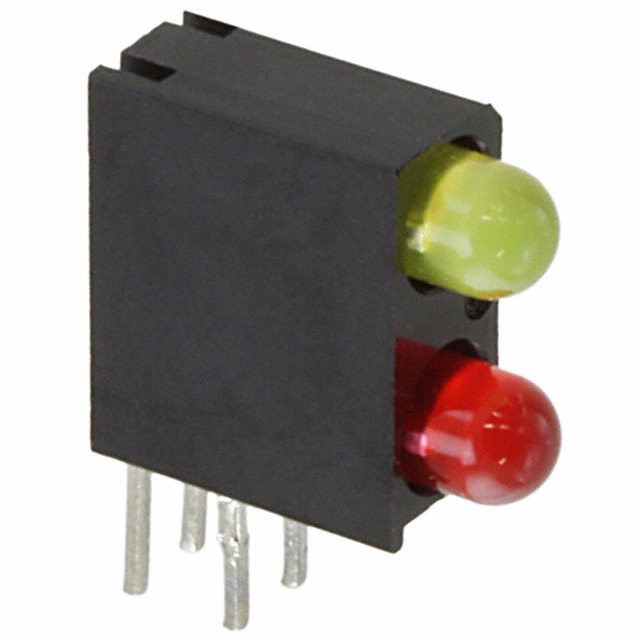

5530131F
ActiveDIALIGHT
LED CBI 3MM BI-LVL RED/YELLOW RA
Deep-Dive with AI
Search across all available documentation for this part.
5530131F
ActiveDIALIGHT
LED CBI 3MM BI-LVL RED/YELLOW RA
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 5530131F |
|---|---|
| Color | Yellow, Red |
| Configuration | 2 High |
| Current | 10 mA |
| Lens Size | 3 mm |
| Lens Size | T-1 |
| Lens Style | Round with Domed Top |
| Lens Type | Tinted, Diffused |
| Millicandela Rating | 10 mcd, 6.3 mcd |
| Mounting Type | Through Hole, Right Angle |
| Viewing Angle | 45 ° |
| Voltage Rating | 2.1V Yellow, 2V Red |
| Wavelength - Peak | 635 nm, 585 nm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 2.48 | |
| 10 | $ 1.62 | |||
| 100 | $ 1.18 | |||
| 500 | $ 1.01 | |||
| 1000 | $ 0.96 | |||
| 2000 | $ 0.91 | |||
| 5000 | $ 0.87 | |||
| 10000 | $ 0.84 | |||
Description
General part information
5530131 Series
LED Circuit Board Indicator LED Circuit Board Indicator 2 High Red, Yellow Diffused, Tinted 2V Red, 2.1V Yellow 10mA Round with Domed Top 3mm, T-1 Through Hole, Right Angle
