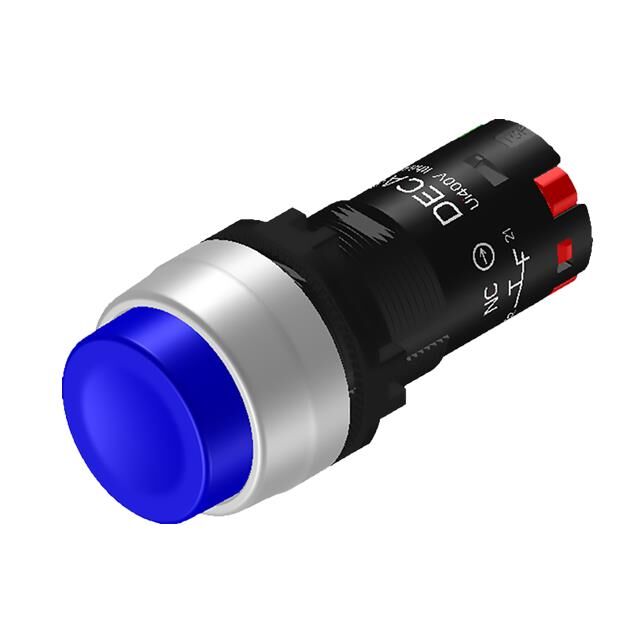

CP24B-M2E11S

Active

MEAN WELL USA Inc.

22MM/BL/MOMENTARY/1NO1NC

Search across all available documentation for this part.

Active

MEAN WELL USA Inc.

22MM/BL/MOMENTARY/1NO1NC

Technical Specifications

Parameters and characteristics for this part

Specification	CP24B-M2E11S

Actuator Type	Round, Button
Circuit	DPST-NO/NC
Color - Actuator/Cap	Blue
Current Rating (Amps)	8 A, 2.5 A
Electrical Life	100000 Cycles
Ingress Protection	IP66
Mechanical Life	5000000 Cycles
Mounting Type	Panel Mount, Front
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-25 °C
Panel Cutout Dimensions [diameter]	22.3 mm
Switch Function	Off-Mom, On-Mom
Termination Style	Spring Terminal
Type	Standard
Voltage Rating - AC	120 V
Voltage Rating - DC	30 V

Part	Color - Actuator/Cap	Voltage Rating - DC	Actuator Type	Termination Style	Type	Switch Function	Operating Temperature [Max]	Operating Temperature [Min]	Circuit	Current Rating (Amps)	Electrical Life	Mechanical Life	Mounting Type	Voltage Rating - AC	Panel Cutout Dimensions [diameter]	Ingress Protection
MEAN WELL USA Inc. CP24B-M2E01G	Green	30 V	Button Round	Spring Terminal	Standard	On-Mom	70 °C	-25 °C	SPST-NC	2.5 A 8 A	100000 Cycles	5000000 Cycles	Panel Mount Front	120 V	22.3 mm	IP66
MEAN WELL USA Inc. CP24B-M2E20S	Blue	30 V	Button Round	Spring Terminal	Standard	Off-Mom	70 °C	-25 °C	DPST-NO	2.5 A 8 A	100000 Cycles	5000000 Cycles	Panel Mount Front	120 V	22.3 mm	IP66
MEAN WELL USA Inc. CP24B-M2E20G	Green	30 V	Button Round	Spring Terminal	Standard	Off-Mom	70 °C	-25 °C	DPST-NO	2.5 A 8 A	100000 Cycles	5000000 Cycles	Panel Mount Front	120 V	22.3 mm	IP66
MEAN WELL USA Inc. CP24B-M2E11S	Blue	30 V	Button Round	Spring Terminal	Standard	Off-Mom On-Mom	70 °C	-25 °C	DPST-NO/NC	2.5 A 8 A	100000 Cycles	5000000 Cycles	Panel Mount Front	120 V	22.3 mm	IP66

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 19.01

General part information

Pushbutton Switch DPST-NO/NC Standard Panel Mount, Front
