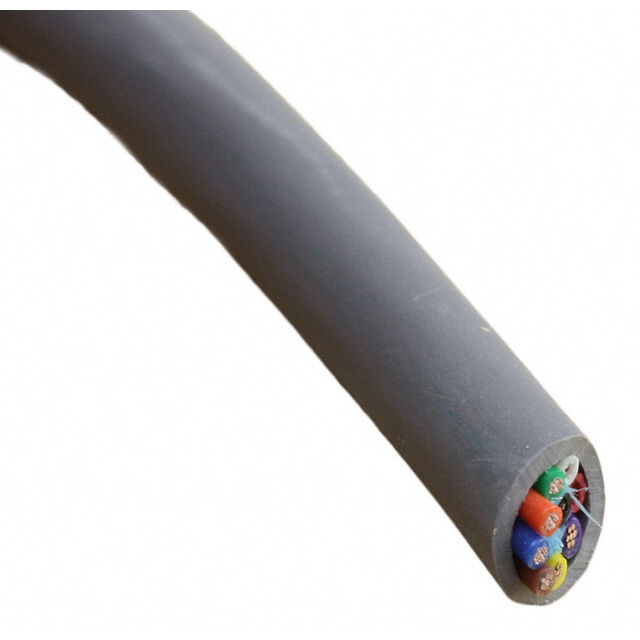

1179C SL001

Active

ALPHA WIRE

CABLE 9COND 22AWG SLATE 1000'

Search across all available documentation for this part.

Active

ALPHA WIRE

CABLE 9COND 22AWG SLATE 1000'

Technical Specifications

Parameters and characteristics for this part

Specification	1179C SL001

Cable Type	Multi-Conductor
Conductor Insulation	Poly-Vinyl Chloride (PVC)
Conductor Material	Copper, Tinned
Conductor Strand [custom]	7
Conductor Strand [custom]	30 AWG
Jacket (Insulation) Diameter [diameter]	0.246 in
Jacket (Insulation) Diameter [diameter]	6.25 mm
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC)
Jacket Color	Slate
Length	1000 ft
Length	304.8 m
Number of Conductors	9
Operating Temperature [Max]	80 C
Operating Temperature [Min]	-20 C
Usage	Control, Communication
Voltage	150 V
Wire Gauge	22 AWG

Part	Conductor Material	Conductor Strand [custom]	Conductor Strand [custom]	Operating Temperature [Min]	Operating Temperature [Max]	Jacket (Insulation) Material	Cable Type	Number of Conductors	Wire Gauge	Usage	Voltage	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Length [x]	Length [x]	Conductor Insulation	Jacket Color	Length	Length
ALPHA WIRE 1179C SL002	Copper Tinned	7	30 AWG	-20 C	80 C	Poly-Vinyl Chloride (PVC)	Multi-Conductor	9	22 AWG	Communication Control	150 V	0.246 in	6.25 mm	500 '	152.4 m	Poly-Vinyl Chloride (PVC)	Slate
ALPHA WIRE 1179C SL001	Copper Tinned	7	30 AWG	-20 C	80 C	Poly-Vinyl Chloride (PVC)	Multi-Conductor	9	22 AWG	Communication Control	150 V	0.246 in	6.25 mm			Poly-Vinyl Chloride (PVC)	Slate	1000 ft	304.8 m

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Spool	1	$ 980.25

General part information

9 Conductor Multi-Conductor Cable Slate 22 AWG 1000.0' (304.8m)
