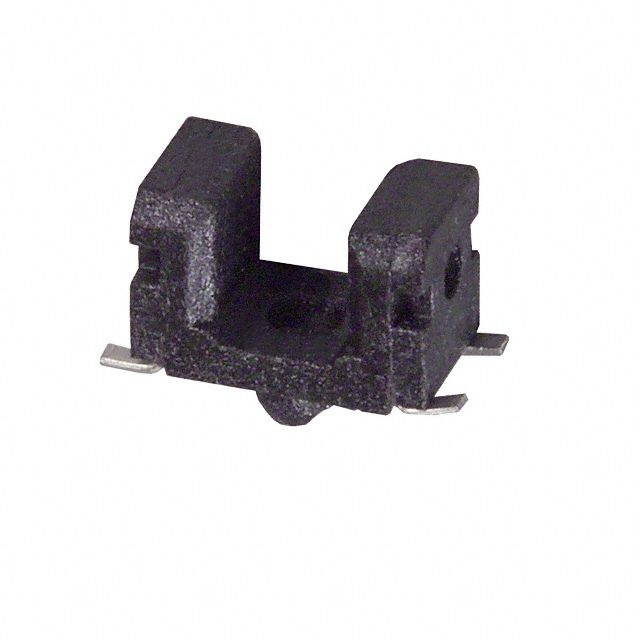

GP1S092HCPIF
ActiveSHARP/Socle Technology
SENSOR OPT SLOT PHOTOTRANS 4SMD
Deep-Dive with AI
Search across all available documentation for this part.
GP1S092HCPIF
ActiveSHARP/Socle Technology
SENSOR OPT SLOT PHOTOTRANS 4SMD
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | GP1S092HCPIF |
|---|---|
| Current - Collector (Ic) (Max) [Max] | 20 mA |
| Current - DC Forward (If) (Max) | 50 mA |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -25 °C |
| Output Configuration | Phototransistor |
| Package / Case | 4-SMD |
| Response Time | 50 µs |
| Sensing Distance | 0.079 in |
| Sensing Distance | 2 mm |
| Sensing Method | Through-Beam |
| Type | Unamplified |
| Voltage - Collector Emitter Breakdown (Max) [Max] | 35 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 0.90 | |
| 5 | $ 0.54 | |||
| 10 | $ 0.69 | |||
| 25 | $ 0.60 | |||
| 50 | $ 0.57 | |||
| 100 | $ 0.49 | |||
| 500 | $ 0.43 | |||
| 1000 | $ 0.37 | |||
| Digi-Reel® | 1 | $ 0.90 | ||
| 5 | $ 0.54 | |||
| 10 | $ 0.69 | |||
| 25 | $ 0.60 | |||
| 50 | $ 0.57 | |||
| 100 | $ 0.49 | |||
| 500 | $ 0.43 | |||
| 1000 | $ 0.37 | |||
| Tape & Reel (TR) | 2000 | $ 0.37 | ||
| 4000 | $ 0.36 | |||
| 6000 | $ 0.33 | |||
| 10000 | $ 0.31 | |||
| 14000 | $ 0.33 | |||
| 20000 | $ 0.30 | |||
Description
General part information
GP1S092 Series
Optical Sensor Through-Beam 0.079" (2mm) Phototransistor 4-SMD
