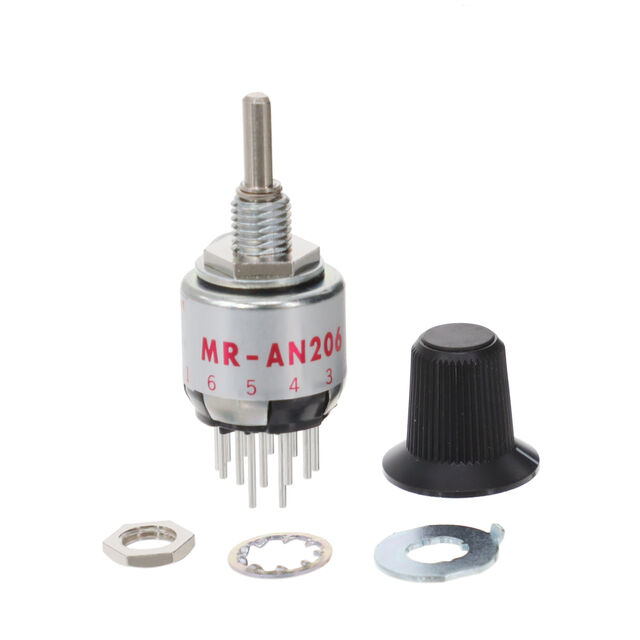

MRAN206-BA
ActiveNKK Switches
SWITCH ROTARY
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
MRAN206-BA
ActiveNKK Switches
SWITCH ROTARY
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | MRAN206-BA |
|---|---|
| Actuator Length [x] | 14.3 mm |
| Actuator Type | Knob |
| Angle of Throw | 30 ° |
| Circuit per Deck [custom] | DP6T |
| Contact Finish | Silver |
| Contact Material | Copper |
| Contact Timing | Non-Shorting |
| Current Rating (Amps) | 250 mA |
| Depth Behind Panel | 17 mm |
| Features | Process Sealed |
| Index Stops | Adjustable |
| Mounting Type | Through Hole, Panel Mount |
| Number of Decks [custom] | 1 |
| Number of Poles per Deck | 2 |
| Number of Positions [Max] | 6 |
| Number of Positions [Min] | 2 |
| Panel Cutout Dimensions [diameter] | 0.25 in |
| Termination Style | PC Pin |
| Voltage Rating - AC | 125 V |
MRAN2 Series
| Part | Features | Panel Cutout Dimensions [diameter] | Current Rating (Amps) | Index Stops | Actuator Length [x] | Circuit per Deck [custom] | Voltage Rating - AC | Number of Positions [Max] | Number of Positions [Min] | Number of Decks [custom] | Termination Style | Contact Timing | Number of Poles per Deck | Contact Material | Angle of Throw | Contact Finish | Mounting Type | Actuator Type | Depth Behind Panel | Actuator Type [diameter] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
NKK Switches | Process Sealed | 0.25 in | 250 mA | Adjustable | 15.8 mm | DP6T | 125 V | 6 | 2 | 1 | PC Pin | Non-Shorting | 2 | Copper | 30 ° | Silver | Panel Mount Through Hole | Knob | 17 mm | |
NKK Switches | Process Sealed | 0.25 in | 250 mA | Adjustable | 13 mm | DP6T | 125 V | 6 | 2 | 1 | PC Pin | Non-Shorting | 2 | Copper | 30 ° | Silver | Panel Mount Through Hole | Knob | 17 mm | |
NKK Switches | Process Sealed | 0.25 in | 250 mA | Adjustable | 14.3 mm | DP6T | 125 V | 6 | 2 | 1 | PC Pin | Non-Shorting | 2 | Copper | 30 ° | Silver | Panel Mount Through Hole | Knob | 17 mm | |
NKK Switches | Process Sealed | 0.25 in | 250 mA | Adjustable | 14.3 mm | DP6T | 125 V | 6 | 2 | 1 | PC Pin | Non-Shorting | 2 | Copper | 30 ° | Silver | Panel Mount Through Hole | Knob | 17 mm | |
NKK Switches | Process Sealed | 0.25 in | 250 mA | Adjustable | 14.3 mm | DP6T | 125 V | 6 | 2 | 1 | PC Pin | Non-Shorting | 2 | Copper | 30 ° | Silver | Panel Mount Through Hole | Knob | 17 mm | |
NKK Switches | Process Sealed | 0.25 in | 250 mA | Adjustable | 14.3 mm | DP6T | 125 V | 6 | 2 | 1 | PC Pin | Non-Shorting | 2 | Copper | 30 ° | Silver | Panel Mount Through Hole | Knob | 17 mm | |
NKK Switches | Process Sealed | 0.25 in | 250 mA | Adjustable | 15.8 mm | DP6T | 125 V | 6 | 2 | 1 | PC Pin | Non-Shorting | 2 | Copper | 30 ° | Silver | Panel Mount Through Hole | Knob | 17 mm | |
NKK Switches | Process Sealed | 0.25 in | 250 mA | Adjustable | 10 mm | DP6T | 125 V | 6 | 2 | 1 | PC Pin | Non-Shorting | 2 | Copper | 30 ° | Silver | Panel Mount Through Hole | Flatted | 17 mm | 3.17 mm |
NKK Switches | Process Sealed | 0.25 in | 250 mA | Adjustable | 14.3 mm | DP6T | 125 V | 6 | 2 | 1 | PC Pin | Non-Shorting | 2 | Copper | 30 ° | Silver | Panel Mount Through Hole | Knob | 17 mm | |
NKK Switches | Process Sealed | 0.25 in | 250 mA | Adjustable | 13 mm | DP6T | 125 V | 6 | 2 | 1 | PC Pin | Non-Shorting | 2 | Copper | 30 ° | Silver | Panel Mount Through Hole | Knob | 17 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 20.14 | |
| 10 | $ 18.18 | |||
| 100 | $ 15.79 | |||
Description
General part information
MRAN2 Series
Rotary Switch 2 ~ 6 Position DP6T 250mA (AC) 125 VAC Panel Mount, Through Hole
