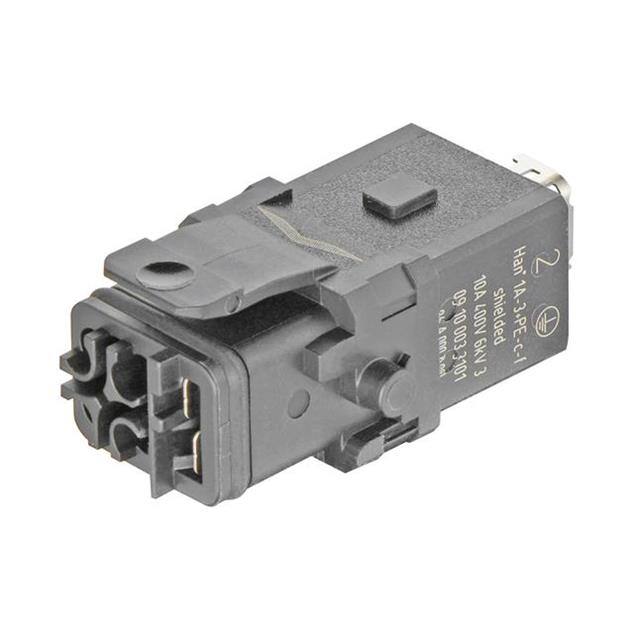

09100033101

Active

HARTING Technology Group

1A 3+PE FEM SHIELD CRIMP SLATCH

Search across all available documentation for this part.

Active

HARTING Technology Group

1A 3+PE FEM SHIELD CRIMP SLATCH

Technical Specifications

Parameters and characteristics for this part

Specification	09100033101

Color	Black
Connector Type	Insert without Contacts
Contact Type	Han® D
Current Rating (Amps)	10 A
Gender	Female
Housing Material	Polyamide (PA), Nylon
Material Flammability Rating	UL94 V-0
Number of Positions	3+Ground
Operating Temperature [Max]	90 °C
Operating Temperature [Min]	-30 ░C
Size	1 A
Termination Style	Crimp
Voltage Rating	400 V

Part	Number of Positions	Housing Material	Current Rating (Amps)	Color	Termination Style	Voltage Rating	Material Flammability Rating	Operating Temperature [Min]	Operating Temperature [Max]	Size	Gender	Connector Type	Contact Type
HARTING Technology Group 09100033100	3+Ground	Polyamide (PA) Nylon	10 A	Black	Crimp	400 V	UL94 V-0	-30 ░C	90 °C	1 A	Female
HARTING Technology Group 09100033105	3+Ground	Polyamide (PA) Nylon	10 A	Black	Crimp	400 V	UL94 V-0	-30 ░C	90 °C	1 A	Female
HARTING Technology Group 09100033305	3+Ground	Polyamide (PA) Nylon	16 A	Black	Crimp	400 V	UL94 V-0	-30 ░C	90 °C	1 A	Female
HARTING Technology Group 09100033101	3+Ground	Polyamide (PA) Nylon	10 A	Black	Crimp	400 V	UL94 V-0	-30 ░C	90 °C	1 A	Female	Insert without Contacts	Han® D
HARTING Technology Group 09100033301	3+Ground	Polyamide (PA) Nylon	16 A	Black	Crimp	400 V	UL94 V-0	-30 ░C	90 °C	1 A	Female	Insert without Contacts	Han® D
HARTING Technology Group 09100033205	3+Ground	Polyamide (PA) Nylon	16 A	Black	Crimp	400 V	UL94 V-0	-30 ░C	90 °C	1 A	Male
HARTING Technology Group 09100033300	3+Ground	Polyamide (PA) Nylon	16 A	Black	Crimp	400 V	UL94 V-0	-30 ░C	90 °C	1 A	Female
HARTING Technology Group 09100033206	3+Ground	Polyamide (PA) Nylon	16 A	Black	Crimp	400 V	UL94 V-0	-30 ░C	90 °C	1 A	Male	Insert without Contacts	Han® D
HARTING Technology Group 09100033200	3+Ground	Polyamide (PA) Nylon	16 A	Black	Crimp	400 V	UL94 V-0	-30 ░C	90 °C	1 A	Male
HARTING Technology Group 09100033005	3+Ground	Polyamide (PA) Nylon	10 A	Black	Crimp	400 V	UL94 V-0	-30 ░C	90 °C	1 A	Male

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Female Insert without Contacts Black 3+Ground Position Crimp
