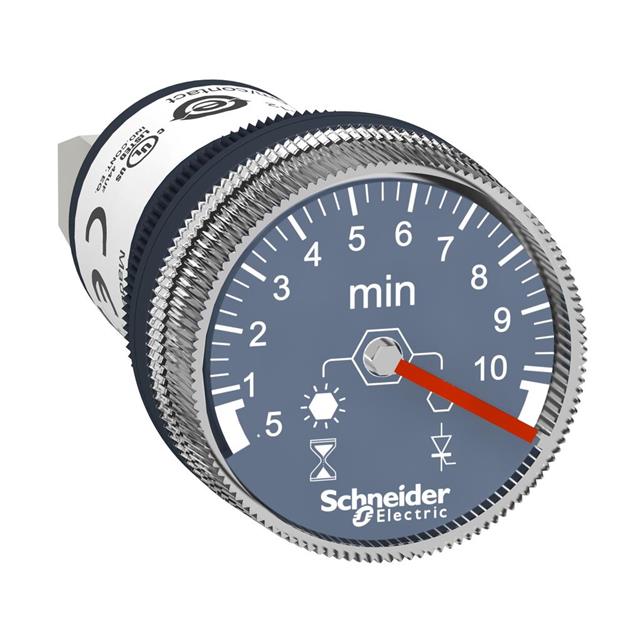

XB5DTGM4

Active

SQUARE D BY SCHNEIDER ELECTRIC

RELAY TIME DELAY 10MIN PNL MT

Search across all available documentation for this part.

Active

SQUARE D BY SCHNEIDER ELECTRIC

RELAY TIME DELAY 10MIN PNL MT

Technical Specifications

Parameters and characteristics for this part

Specification	XB5DTGM4

Delay Time [Max]	10 Min
Delay Time [Min]	0.5 Min
Function	Programmable (Multi-Function)
Relay Type	Timer Only, Relay Not Included
Termination Style	Screw Terminal
Timing Initiate Method	Input Voltage
Voltage - Supply [Max]	230 VAC
Voltage - Supply [Min]	110 VAC

Part	Relay Type	Function	Timing Initiate Method	Delay Time [Min]	Delay Time [Max]	Termination Style	Voltage - Supply	Voltage - Supply [Max]	Voltage - Supply [Min]
SQUARE D BY SCHNEIDER ELECTRIC XB5DTB23	Timer Only Relay Not Included	Programmable (Multi-Function)	Input Voltage	3 Sec	60 Sec	Screw Terminal	24 VDC
SQUARE D BY SCHNEIDER ELECTRIC XB5DTGM4	Timer Only Relay Not Included	Programmable (Multi-Function)	Input Voltage	0.5 Min	10 Min	Screw Terminal		230 VAC	110 VAC
SQUARE D BY SCHNEIDER ELECTRIC XB5DTB25	Timer Only Relay Not Included	Programmable (Multi-Function)	Input Voltage	3 Cyc	60 Min	Screw Terminal	24 VDC
SQUARE D BY SCHNEIDER ELECTRIC XB5DTB24	Timer Only Relay Not Included	Programmable (Multi-Function)	Input Voltage	0.5 Min	10 Min	Screw Terminal	24 VDC

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 74.25

General part information

Programmable (Multi-Function) Time Delay Relay 0.5 Min ~ 10 Min Delay Panel Mount
