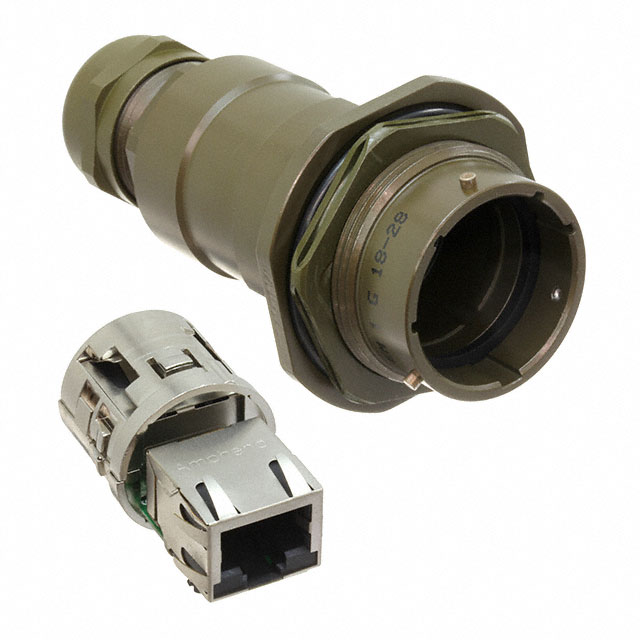

RJF7PEM1G

Active

Amphenol Socapex

CONN MOD COUPLER 8P8C TO 8P8C

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet RJ Field Series Brochure

RJF7PEM1G

Active

Amphenol Socapex

CONN MOD COUPLER 8P8C TO 8P8C

Deep-Dive with AI

DocumentsDatasheet RJ Field Series Brochure

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	RJF7PEM1G

Convert From (Adapter End)	Jack, 8p8c (RJ45)
Convert To (Adapter End)	8p8c (RJ45), Jack
Features	Circular Bayonet Coupling
Ingress Protection	IP67 - Dust Tight, Waterproof
Mounting Feature	Front Side Nut, Metal Gland
Mounting Type	Bulkhead, Panel Mount
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Ratings	Cat5e
Shell Material, Finish	Olive Drab Cadmium Plated, Aluminum
Shielding	Unshielded
Type	Coupler

RJF7PE Series

Part	Ingress Protection	Type	Convert From (Adapter End)	Operating Temperature [Max]	Operating Temperature [Min]	Shell Material, Finish	Shielding	Mounting Type	Features	Mounting Feature	Convert To (Adapter End)	Ratings	Cable Type	Number of Positions/Contacts	Style	Length [x]	Length [x]	Color	Connector Type	Length	Length
Amphenol Socapex RJF7PEM1N	IP67 - Dust Tight Waterproof	Coupler	Jack 8p8c (RJ45)	85 °C	-40 °C	Metal Nickel Plated	Unshielded	Bulkhead Panel Mount	Circular Threaded Coupling	Front Side Nut Metal Gland	8p8c (RJ45) Jack	Cat5e
Amphenol Socapex RJF7PE2G10100BTX							Shielded	Bulkhead Panel Mount	Circular Bayonet Coupling Molded Plugs				Round Cable	8p8c (RJ45 Ethernet)	Cat5e Industrial Environments - IP68	1 m	3.28 ft	Gray	Jack to Plug
Amphenol Socapex RJF7PE1N	IP67 - Dust Tight Waterproof	Coupler	Jack 8p8c (RJ45)	85 °C	-40 °C	Metal Nickel Plated	Unshielded	Bulkhead Panel Mount	Circular Bayonet Coupling	Front Side Nut	8p8c (RJ45) Jack	Cat5e
Amphenol Socapex RJF7PEM1G	IP67 - Dust Tight Waterproof	Coupler	Jack 8p8c (RJ45)	85 °C	-40 °C	Aluminum Olive Drab Cadmium Plated	Unshielded	Bulkhead Panel Mount	Circular Bayonet Coupling	Front Side Nut Metal Gland	8p8c (RJ45) Jack	Cat5e
Amphenol Socapex RJF7PE2B00	IP68 - Dust Tight Waterproof	Adapter	Jack 8p8c (RJ45)	85 °C	-40 °C		Shielded	Bulkhead Panel Mount	Circular Bayonet Coupling	Front Side Nut	PCB	Cat5e
Amphenol Socapex RJF7PE1B	IP67 - Dust Tight Waterproof	Coupler	Jack 8p8c (RJ45)	85 °C	-40 °C	Metal	Unshielded	Bulkhead Panel Mount	Circular Threaded Coupling	Front Side Nut	8p8c (RJ45) Jack	Cat5e
Amphenol Socapex RJF7PEM1B	IP67 - Dust Tight Waterproof	Coupler	Jack 8p8c (RJ45)	85 °C	-40 °C	Metal	Unshielded	Bulkhead Panel Mount	Circular Bayonet Coupling	Front Side Nut Metal Gland	8p8c (RJ45) Jack	Cat5e
Amphenol Socapex RJF7PE2G15100BTX							Shielded	Bulkhead Panel Mount	Circular Bayonet Coupling Molded Plugs				Round Cable	8p8c (RJ45 Ethernet)	Cat5e Industrial Environments - IP68			Gray	Jack to Plug	4.92 '	1.5 m
Amphenol Socapex RJF7PE2B03100BTX							Shielded	Bulkhead Panel Mount	Circular Bayonet Coupling Molded Plugs				Round Cable	8p8c (RJ45 Ethernet)	Cat5e Industrial Environments - IP68	300 mm	0.98 ft	Gray	Jack to Plug
Amphenol Socapex RJF7PE2B15100BTX							Shielded	Bulkhead Panel Mount	Circular Bayonet Coupling Molded Plugs				Round Cable	8p8c (RJ45 Ethernet)	Cat5e Industrial Environments - IP68			Gray	Jack to Plug	4.92 '	1.5 m

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 157.60
		10	$ 123.06
		25	$ 112.16
		50	$ 104.81
		100	$ 98.16

Description

General part information

RJF7PE Series

Modular Coupler Connector Jack, 8p8c (RJ45) To Jack, 8p8c (RJ45) Cat5e Unshielded
